Do LiFePO4 Batteries Need a Special Charger? Experts Explain

LiFePO4 (Lithium Iron Phosphate Battery) batteries have become one of the most popular power solutions for RVs, solar, marine applications, and backup power systems thanks to their long lifespan, excellent safety, and stable performance.

However, in real-world use, many first-time users often wonder: “Do I need a special charger for a LiFePO4 battery?” The short answer is yes. Using a properly matched charger is essential for battery safety, performance, and longevity.

This guide explains why LiFePO4 battery charger compatibility matters and how to safely handle charging LiFePO4 battery systems.

Why LiFePO4 Batteries Require a Properly Matched Charger?

The core reason why LiFePO4 batteries require a dedicated charger is that, the charging characteristics determine that they must be paired with a specifically matched charger.

The charging process for LiFePO4 batteries follows strict voltage and current requirements. The battery features a Battery Management System (BMS), which acts as the battery’s built-in safety protection.

The BMS is responsible for monitoring voltage, current, and temperature to help prevent issues such as overcharging, over-discharging, and overheating. However, the BMS is not designed to handle incorrect charging conditions indefinitely.

If you repeatedly use a charger with the wrong voltage, the BMS may constantly switch on and off to protect the battery. Over time, this can wear down internal BMS components and shorten the battery’s lifespan.

What Happens If the LiFePO4 Charger Voltage Is Incorrect?

When the LiFePO4 charger voltage does not match the battery’s required specifications, only two outcomes are possible—and both can cause irreversible damage to the battery:

Scenario 1: Charger Voltage Is Too Low

If the charger voltage is lower than the battery’s recommended charging range, the battery cannot be fully charged. Remaining in a low state of charge for extended periods can accelerate capacity degradation over time.

For example, if you try using a 12V charger on a 24V LiFePO4 battery, the charger simply cannot reach the battery’s required charging voltage. As a result, the charging process never starts, and the battery remains uncharged.

While this usually will not cause direct damage to the battery, the battery simply will not charge, resulting in wasted time and unnecessary frustration.

Scenario 2: Charger Voltage Is Too High

If the charger voltage is higher than the recommended range, the BMS will initially and repeatedly activate its protection mechanism to cut off the charging circuit. However, frequent switching places continuous stress on the BMS components.

Once the BMS fails, the battery may face serious risks such as overcharging, overheating, and even potential safety hazards.

For example, if you use a 24V charger on a 12V LiFePO4 battery, the battery’s BMS will detect excessive voltage and immediately activate over-voltage protection.

At first, it may seem like the battery is protected and everything is fine. However, prolonged use of a high-voltage charger will cause the BMS to repeatedly trigger its protection mode and frequently switch the MOSFETs on and off. Each switching cycle places electrical stress on the internal components of the BMS. Over time, this may lead to BMS failure.

Once the BMS fails, the battery loses its final layer of safety protection. This can cause the battery voltage to rise beyond safe limitations, resulting in internal overheating, cell swelling, and in extreme cases, thermal runaway and fire risk.

Recommended Charging Voltage for LiFePO4 Batteries

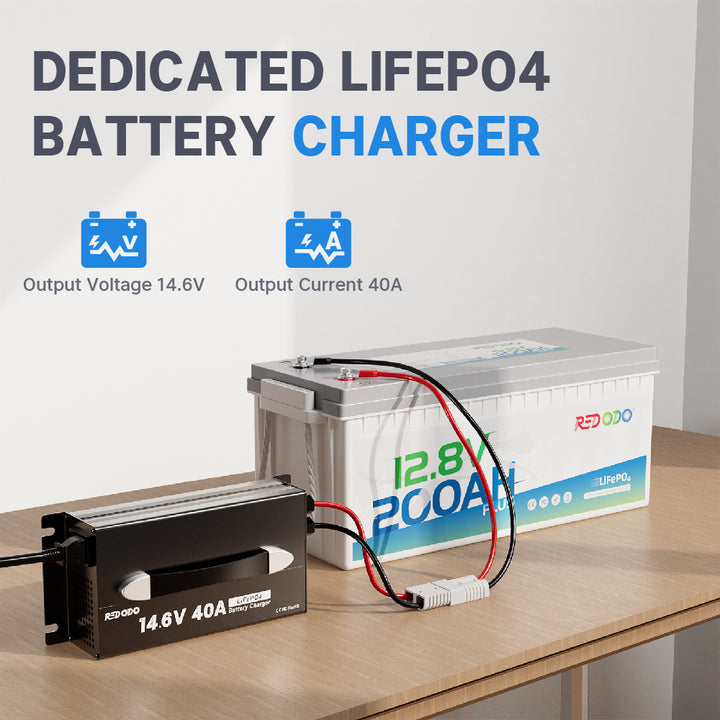

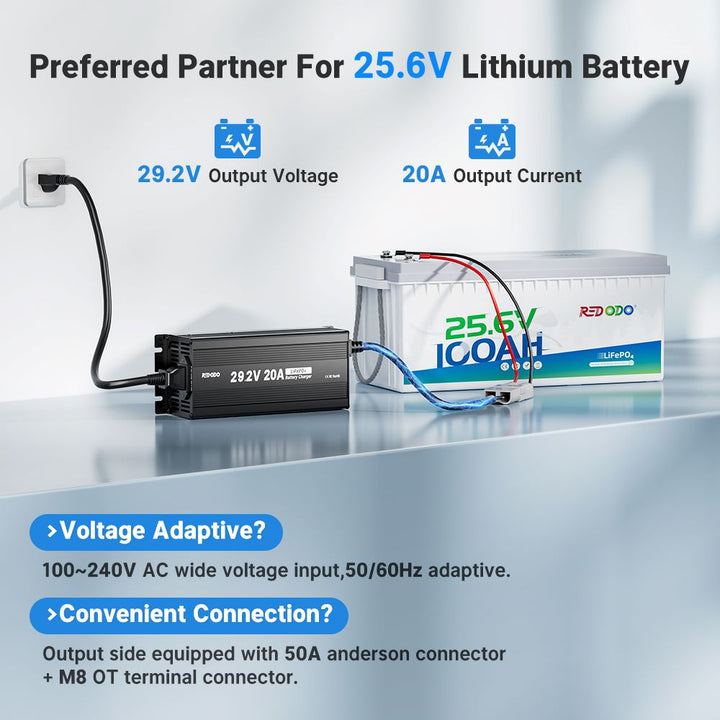

To safely handle charging LiFePO4 battery systems, always use a charger specifically matched to the battery voltage.

Here are the standard charging voltage ranges for common LiFePO4 battery configurations:

Related Reading: LiFePO4 Lithium Battery Voltage Charts

Can I Use a Lead-Acid Charger on a LiFePO4 Battery?

Using a traditional lead-acid charger for LiFePO4 batteries is not recommended.

Lead-acid chargers typically include a “float charging” stage designed for lead-acid chemistry. LiFePO4 batteries do not require float charging in the same way.

Additionally, the two have different charging voltage profiles, and their charging algorithms are not compatible with each other.

For long-term safety and battery health, always use a dedicated LiFePO4 charger.

Related Reading: Can I Charge LiFePO4 Battery with a Normal Charger?

Frequently Asked Questions

Can I use a slightly higher-voltage lead-acid charger for my 12V LiFePO4 battery with built-in BMS?

No, this is not recommended. Lead-acid chargers typically include a “float charging” mode that is unnecessary for LiFePO4 batteries. In addition, the voltage profile of lead-acid does not match LiFePO4 requirements. This mismatch can cause the BMS to repeatedly trigger protection, which may eventually damage the system.

For safe and reliable performance, always use a charger specifically designed for LiFePO4 batteries.

If I accidentally use the wrong charger once, will my battery be damaged?

Not necessarily. If it only happens once and the BMS activates normally to protect the battery, switching back to the correct charger promptly will usually prevent any damage.

However, repeated use of an incompatible charger, or signs of abnormal BMS behavior, may indicate potential BMS damage. In this case, stop charging immediately, switch back to the proper charger, and test whether the battery operates normally.

How do I know if my charger is compatible with my LiFePO4 battery?

The best way is to check the charging specifications listed on the battery label or in the user manual. Key parameters include the recommended charging voltage and charging current.

For example, a typical 12.8V LiFePO4 battery recommends:

• Charging voltage: 14.4V ± 0.2V
• Maximum charging current: up to 100A (depending on the model)

Conclusion

LiFePO4 batteries have strict charging voltage requirements. Using an incompatible charger, especially one with a higher voltage, can damage the BMS and may even lead to safety hazards.

To ensure safe LiFePO4 battery charging, always use a properly matched charger, verify that the voltage is correct, and never mix chargers across different voltage systems.

A proper charger costs far less than replacing a damaged battery, or dealing with a preventable safety issue. The small investment brings you long-term peace of mind.
