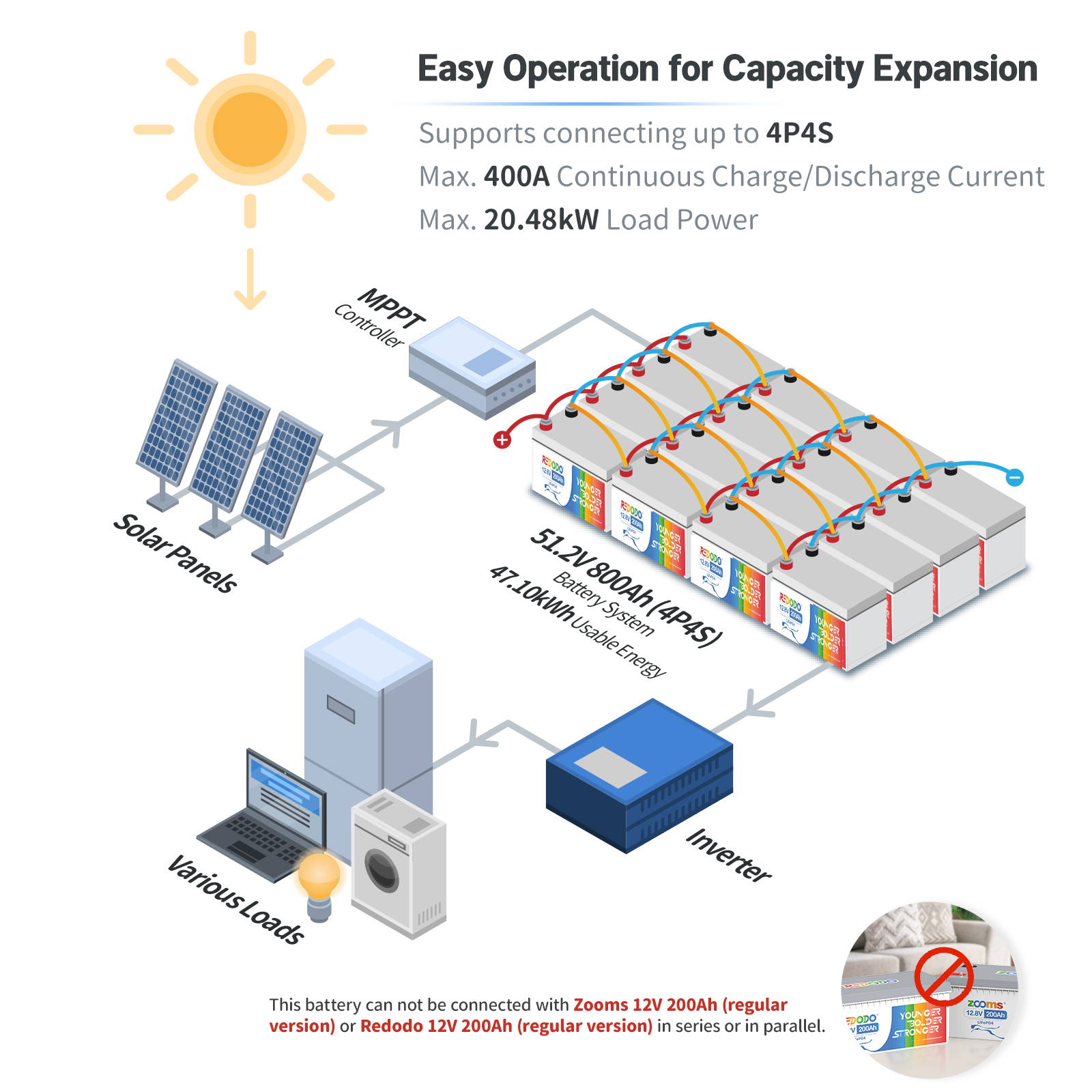

Recommend Max. Battery System
Connecting 16*12.8V 200Ah LiFePO4 batteries in 4P4S to build a 51.2V 800Ah Battery System.
(Accounted by the Usable Capacity, connecting 16*12.8V 200Ah LiFePO4 batteries in 4P4S, you can actually build a 51.2V 920Ah Battery System)
It could support Max. 400A continous charge/discharge current, Max. 20.48kW load powe and Max. 40.96kWh
To connect in series or /and parallel, batteries should meet the below conditions:
a. identical batteries with the same battery capacity (Ah) and BMS (A);
b. from the same brand (Note: Redodo 12V 200Ah Pro battery is not recommended to connect with Redodo 12V 200Ah & Zooms 12V 200Ah battery)
c. purchased in near time (within three months)

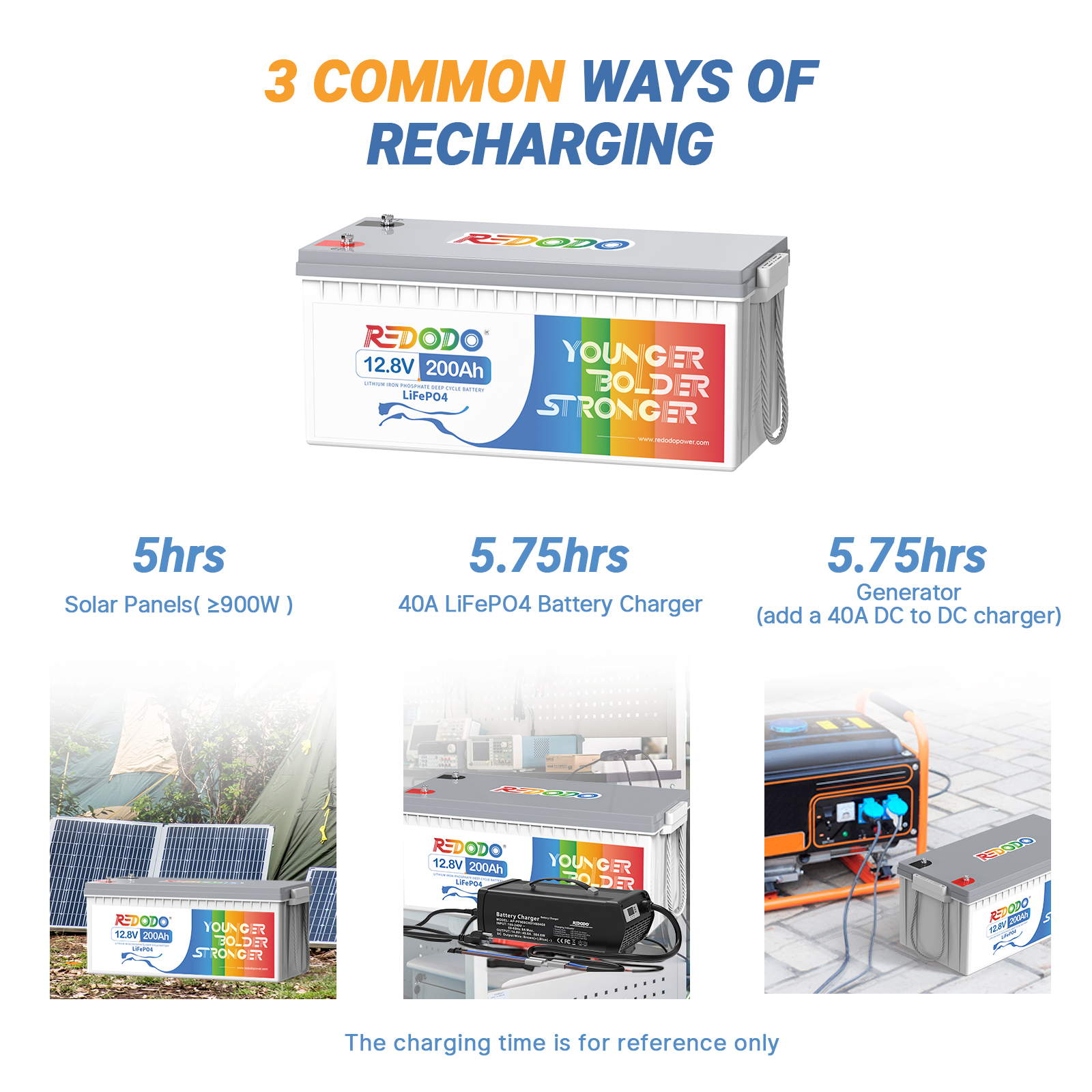

40Amp LiFePO4 Battery Charger
Regarding the charger, we recommend battery charger that supports LiFePO4 battery charging. To fully charge the battery, the DC charging voltage should be between 14.2V~14.6V, and charging current less than 100A. And we usually recommend 0.2C charging current, that is 40A charging current and it will cost around 5hrs to full charged it.
Green Solar Charging
Recommended Solar Panels: ≥600W, it will cost around 1day to full charge it, as the effective light time is 4-5hrs per day)
We suggest that you add an 40A DC to DC charger if you use the generator to charge the battery
Nominal Capacity: 200Ah (Actual 230Ah available)
Nominal Voltage: 12.8V
Max. Continuous Charge/Discharge Current (BMS): 100A
Max. Continuous Load Power: 1280W
Charge Voltage: 14.4V±0.2V
Cycle Life: 4000 Cycles @100% DOD, 6000 Cycles @80% DOD, 15000 Cycles @60% DOD
Dimension: 20.55 x 9.45 x 8.58 inches
Weight: Approx. 62.2 Pounds
Working Temperature Range: Charge: 0℃ to 50℃ / Discharge: -20℃ to 60℃
Why buy from Redodo?
Grade-A cells at super friendly price
We do 100% testing of all Redodo batteries before shipping to you, with grade-A cells and high-quality materials at radically prices than comparable retails.
1-8 working days fast and free delivery
In order to let you start your quality life faster, our team is able to deliver your order from our US local warehouse to your front door within 1-8 business days.
Lifetime technical consult service
Redodo provides 5-year warranty for batteries (2-year for chargers) and lifetime consultation support, we hope you can feel easy and enjoyable when you use the battery.
We love to help
Our Team injects passion, integrity, respect, and professionalism into our LiFePO4 batteries and business, if you have any questions, please feel free to contact us, we love to help.
