System Voltage: 12V/24V/Auto
No-Load Loss: 12mA at 12V/ 10mA at 24V
Battery Voltage: 9V to 32V
Max. Solar Input Voltage：100V
Max. Power Point Voltage Range：Battery Voltage+3V to 76V
Rated Charging Current：40A
Rated Load Current: 20A
Max. Capacitive Load Capacity: 8000uF

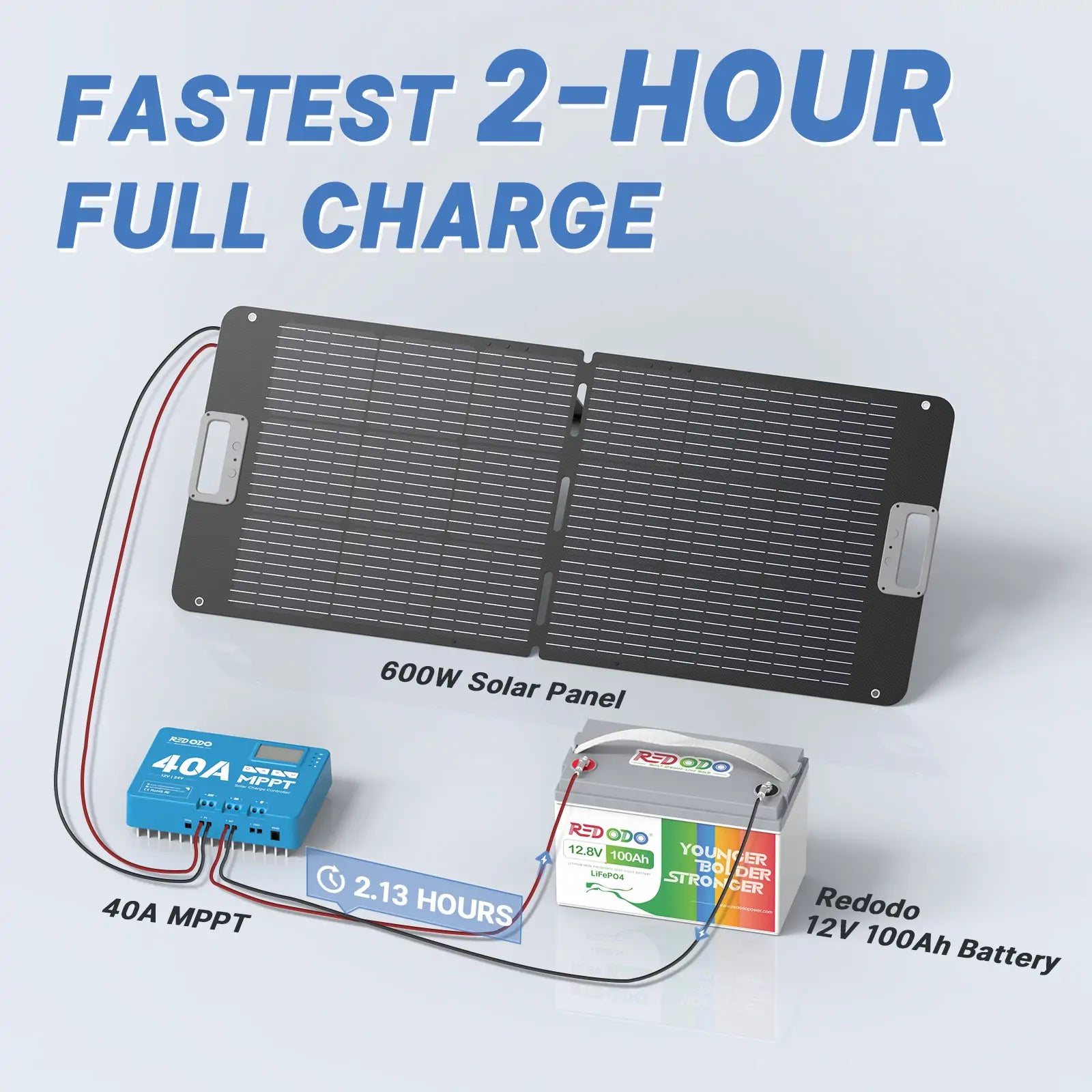

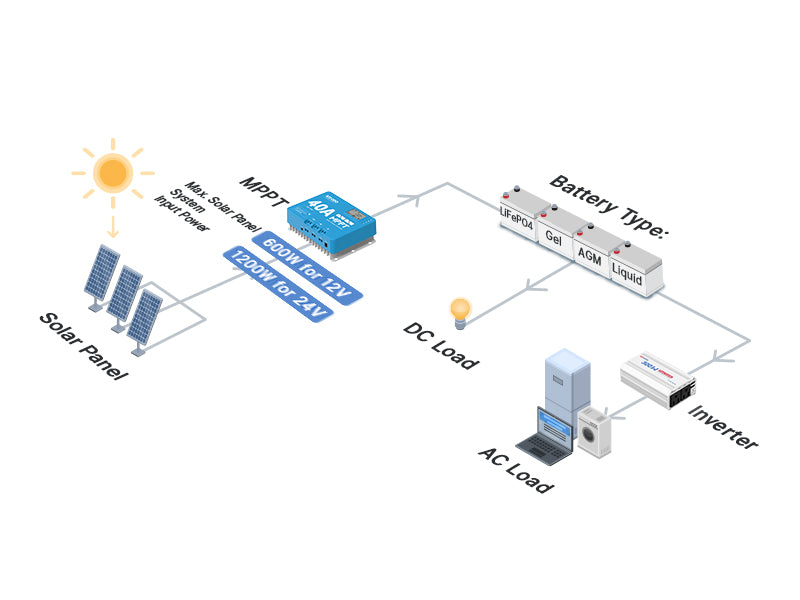

Max. Solar Panel System Input Power: 600W for 12V / 1200W for 24V
Conversion Efficiency: ≤ 97%
MPPT Tracking Efficiency: 99.9%
Temp Compensation Factor: -3mv/℉ or ℃/2V (Default)
Operating Temperature: -31°F to 113°F/-35°C to 45°C
Protection Degree: IP32
Weight: 4.41lb / 2kg

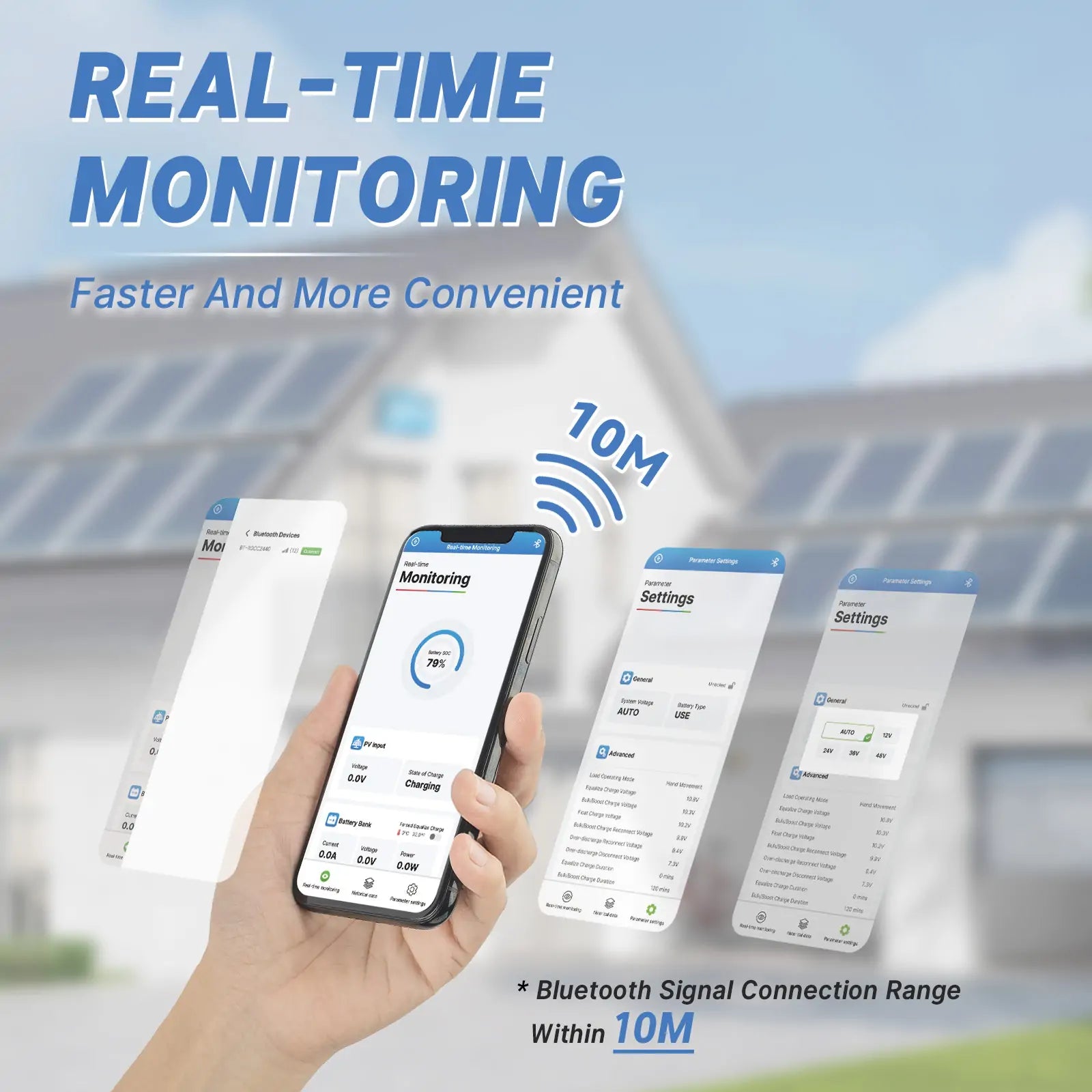

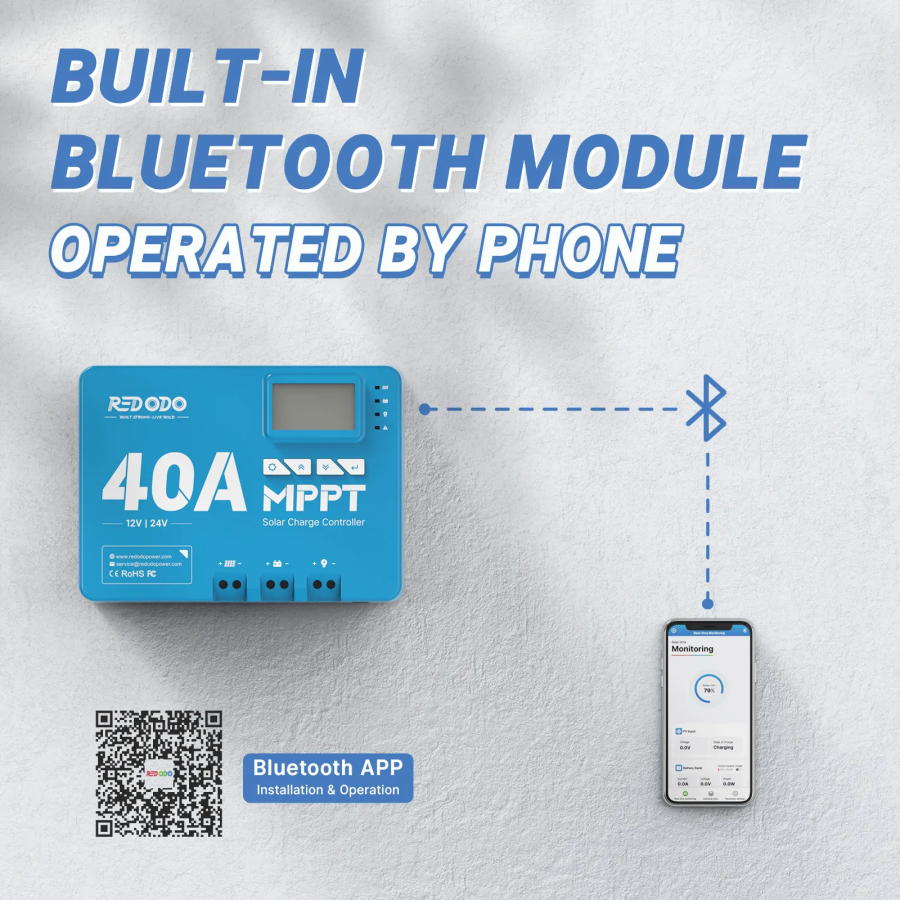

Communication Method: RS485(RJ12) / Inbuilt BT
Dimensions: L9.65*W7.07*H3.25 inch / L245*W180*H82.5 mm
Why buy from Redodo?
Grade-A cells at super friendly price
We do 100% testing of all Redodo batteries before shipping to you, with grade-A cells and high-quality materials at radically prices than comparable retails.
2-5 working days fast and free delivery
In order to let you start your quality life faster, our team is able to deliver your order from our US local warehouse to your front door within 2-5 business days.
Lifetime technical consult service
Redodo provides 5-year warranty for batteries (2-year for chargers) and lifetime consultation support, we hope you can feel easy and enjoyable when you use the battery.
We love to help
Our Team injects passion, integrity, respect, and professionalism into our LiFePO4 batteries and business, if you have any questions, please feel free to contact us, we love to help.
