Redodo 12V 40A DC to DC Charger with MPPT
the dimensions of Redodo 12V 40A DC to DC Charger with MPPT
Redodo 12V 40A DC to DC Charger with great safety from multiple protection

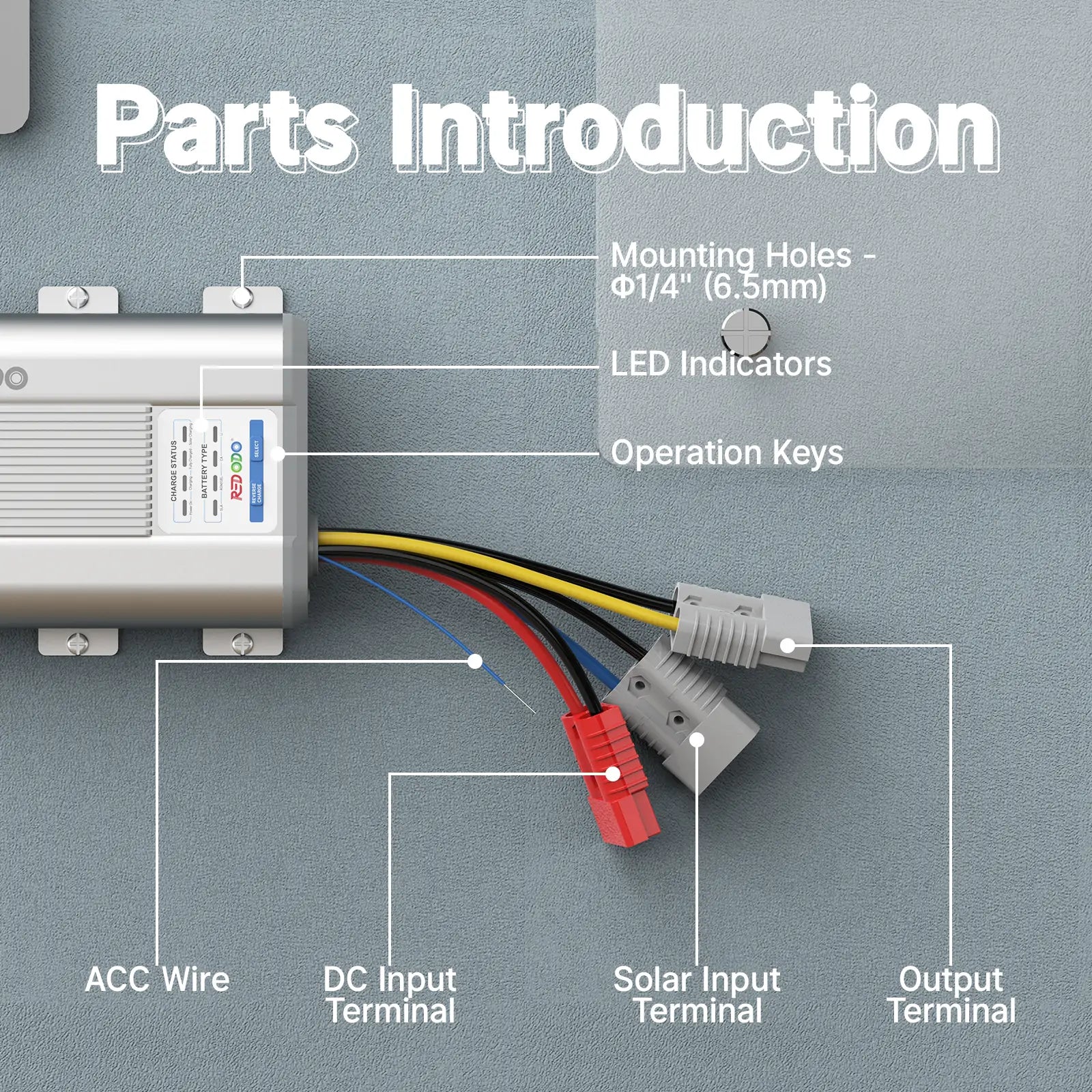

parts introduction of Redodo 12V 40A DC to DC Charger with MPPT

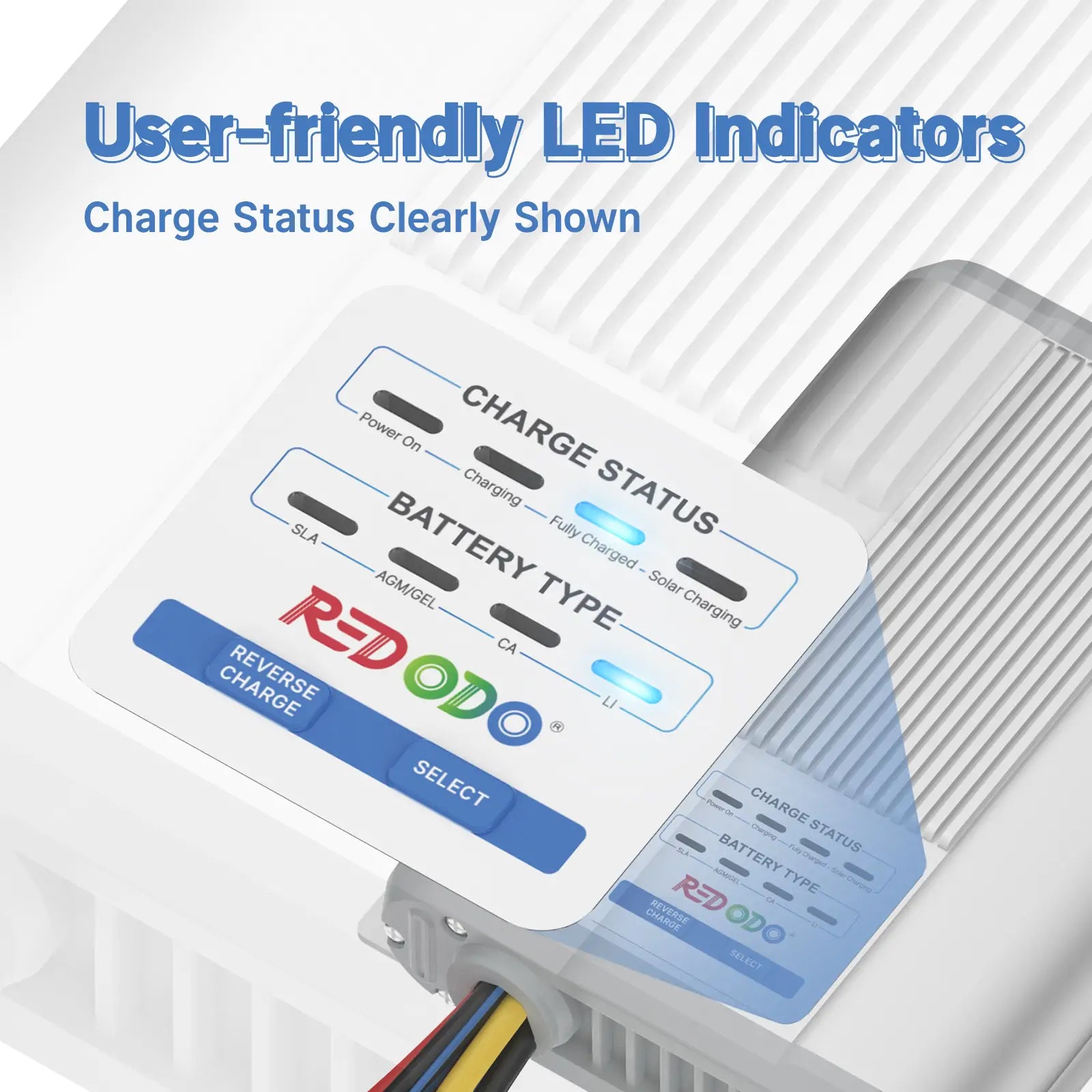

Redodo 12V 40A DC to DC Charger with user-friendly led indicators

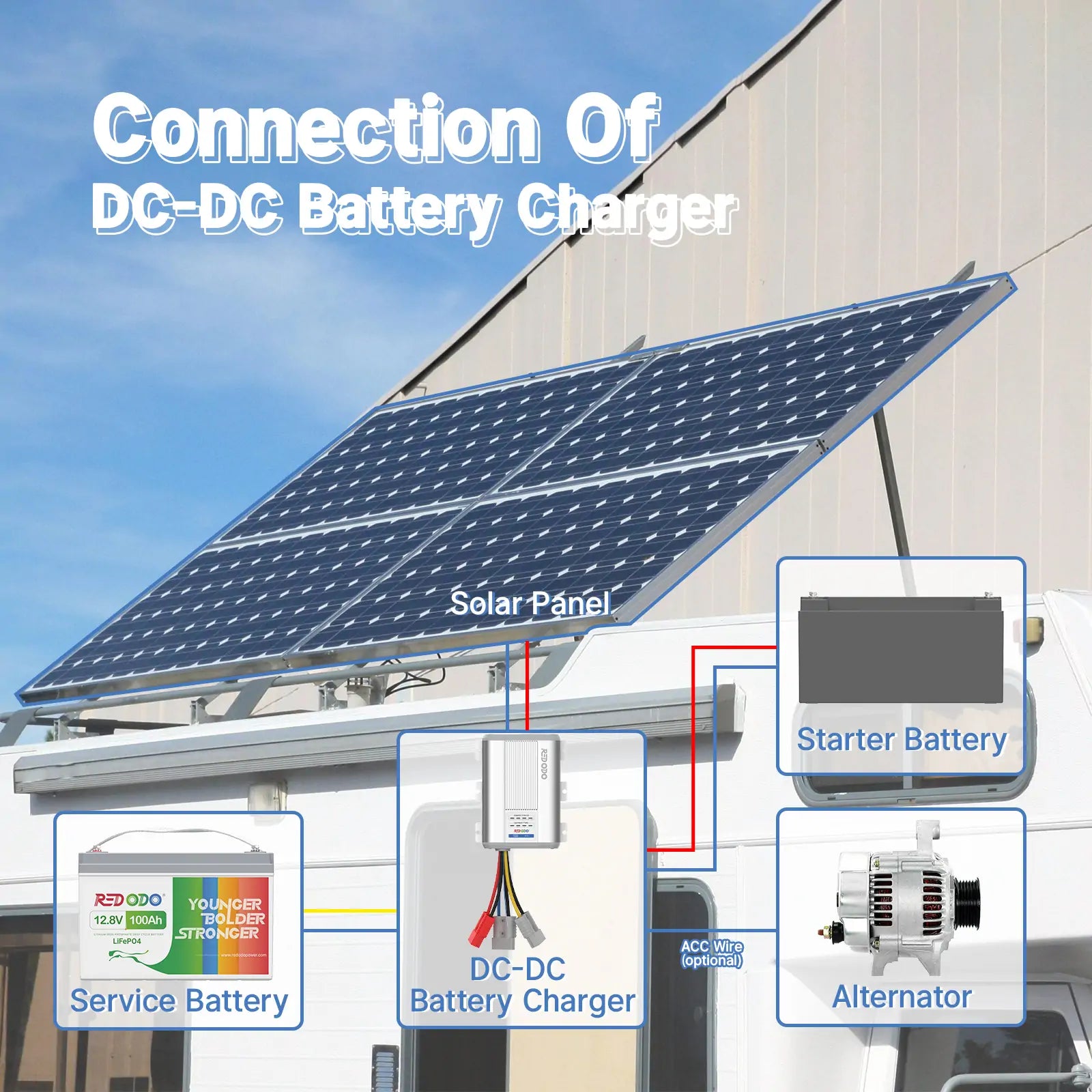

connection of dc-dc battery charger

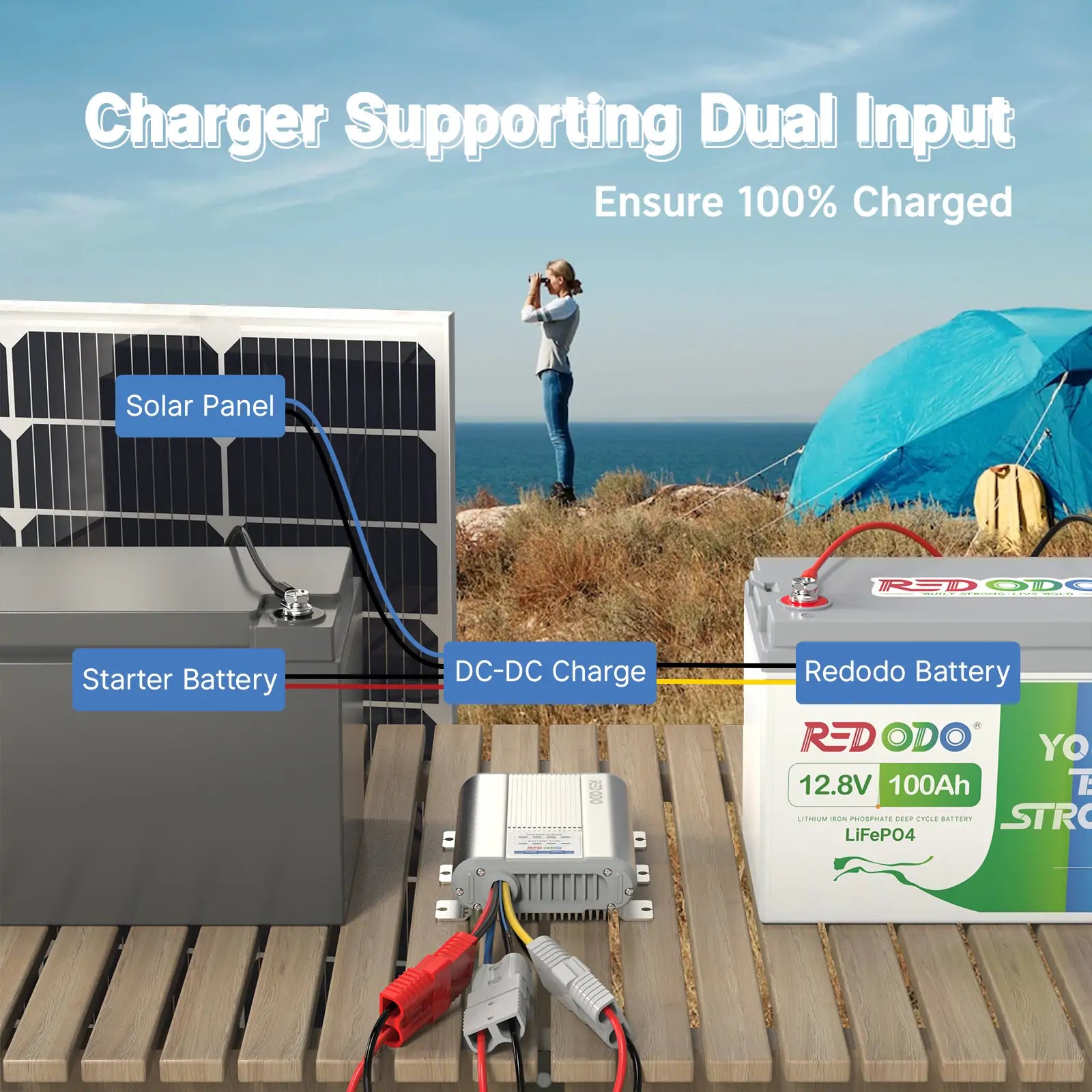

Redodo 12V 40A DC to DC Charger supporting dual input ensure 100% charged

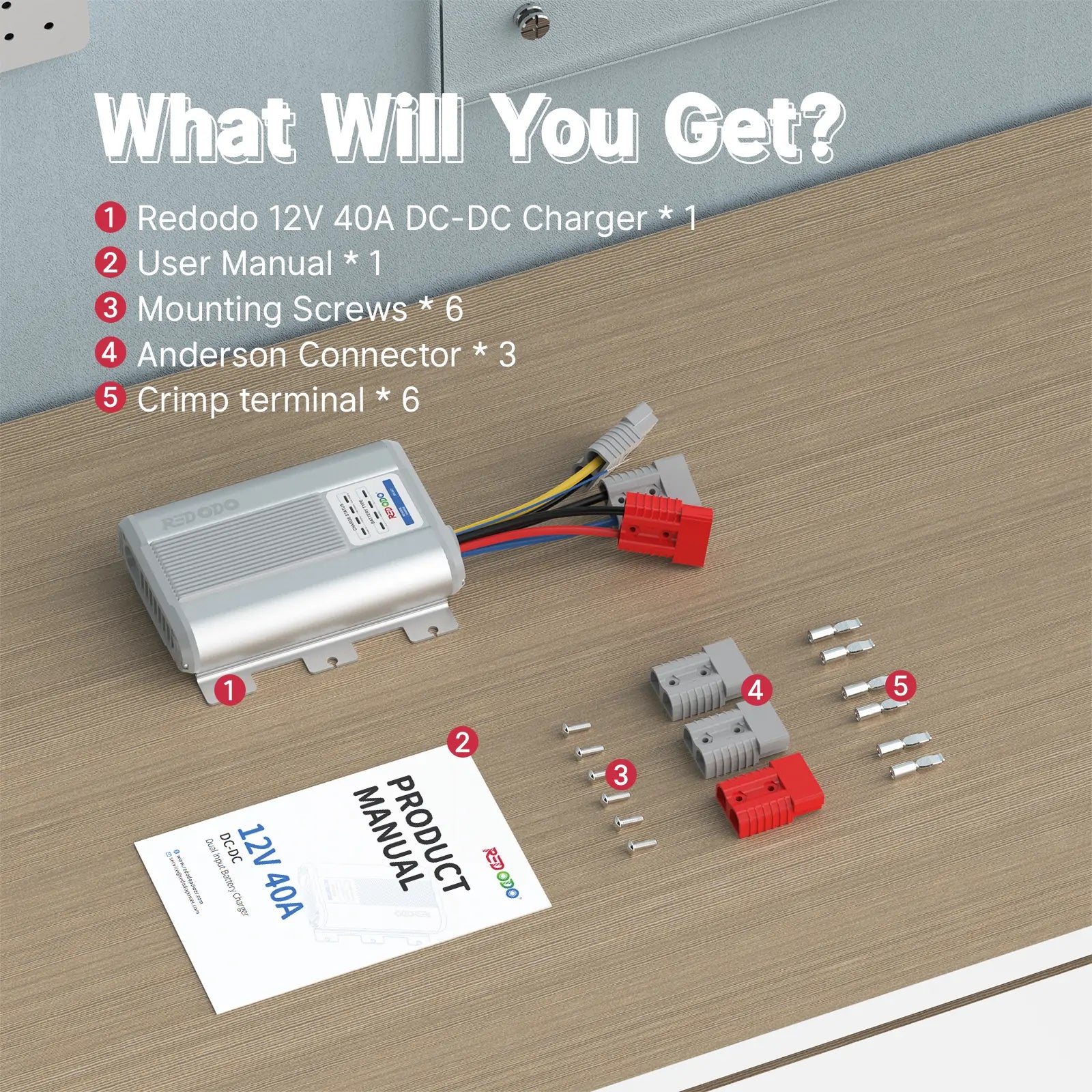

Redodo 12V 40A DC to DC Charger with MPPT packages
the application scenarios of Redodo 12V 40A DC to DC Charger with MPPT
Redodo 12V 40A DC to DC Charger with MPPT set battery choice free

Redodo 12V 40A DC to DC Charger with MPPT

$128.98 $149.99

  • Order today, expected to be delivered onDec 06 - Dec 10

  • Free shipping, tax (vary by region) will be calculated at checkout

【Dual Input for 100% Charged】Redodo DC-DC battery charger is intended to charge the service battery through a starter battery or solar panels, making the service battery 100% charged more flexibly. With built-in MPPT technology, the charger is able to achieve a high charging efficiency from solar panels at a suitable voltage. The user-friendly indicators on the charger makes it possible for the user to easily know the charging status of the service battery.

【Multiple Protections Bring Ultra Safety】The 12V 40A DC to DC charger has multiple intelligent protections from over-charge, over-voltage, overheating, and reverse polarity and BMS protection for LiFePO4 batteries. Besides, it supports reverse charging the starter battery through the service battery, thus protecting the starter battery & alternator from damage due to over-discharge. Besides, this charger can activate the LiFePO4 battery when the BMS inside the battery shuts off.

【Compact Design & Easy setup】Redodo battery charger is small and exquisite, simple to be installed. With a compact design (dimension: 5.8*1.89*7.44 inch, weight: 2.43 lbs), it occupies less room and saves more space on your vehicle, bringing more convenience and less concern during the setup. The built-in Anderson connectors makes the installation simpler and easier.

【Compatible With Various Battery Types】This DC-DC on-board charger is compatible with AGM, Gel, SLA, CA and Lithium batteries, totally setting your battery choice free. It can be widely used for charging the service battery in multiple applications for RV, trailer, camper, truck, van, vehicle, yacht, marine, etc. as an on-board charger.

【Reliable Service】 Redodo offers one-on-one customer service and lifetime technical support. If you have any questions, please feel free to contact us.
Only 18 item(s) left in stock!
Ask a question Share
Redodo 12V 40A DC to DC Charger with MPPT

Redodo 12V 40A DC to DC Charger with MPPT

$128.98 $149.99
Product description
Redodo 12V 40A DC to DC Charger with MPPT
Redodo 12V 40A DC to DC Charger with MPPT for AGM, Gel, SLA, Lithium
Redodo-DC-DC-battery-chargerRedodo-12V-40A-DC-to-DC-Charger-with-MPPT-using-for-Rv,-camper,-van
Redodo DC-DC battery charger is intended to charge the service battery through a starter battery or solar panels-1
Redodo DC-DC charger has multiple intelligent protections from over-charge, over-voltage, overheating-2
Redodo-DC-DC-on-board-charger-is-compatible-with-AGM,-Gel,-SLA,-CA-and-Lithium-batteries
Parameters

System Voltage：12V

Service Battery Voltage Range：7V to 15.4V

Max. Charging Current：40A

Battery Type：SLA,AGM,GEL, CA, LI

Charging Efficiency：Up to 93%

Solar Charging Mode：MPPT

Min. Solar Input Voltage：10V

Max. Solar Input Voltage：30V

Max. Solar Input Power：600W

Alternator (/Starter Battery)　Input Voltage：Traditional Alternator: 11.3-24VDC / Smart Alternator: 12-24VDC

Max. Alternator Input Power：600W

Standby Self-consumption：<10mA

Operating Temperature Range：-10°C to 45°C/-14°F to 113°F

Storage Temperature Range：-20°C to 65°C/-4F to 149°F

Humidity Range：0%~90%

Dimensions：5.83*1.89*7.44 inch/148*48*189 mm

Weight：1.1kg/2.43lbs

Terminal Size：50A Anderson Connector
