[Official] Redodo 12V 100Ah vs 12V 100Ah Mini

Aug 14, 2023

The Redodo 12V 100Ah and Redodo 12V 100Ah Mini LiFePO4 batteries are highly sought-after options from Redodo. Nevertheless, customers often face difficulties in choosing between the two. To address this issue, this article will make a comprehensive comparison of these battery types. Through a detailed exploration, our goal is to support you in making a well-informed decision.

Part 1: The Similarities Between the Redodo 12V 100Ah Battery and 12V 100Ah Mini

In terms of various performance parameters such as voltage, capacity, cycle life, charge, and discharge rate, these two batteries are the same.

redodo 12v 100ah vs 12v 100ah mini

1. Voltage & Capacity

The nominal voltage at 12V, rated capacity of 100Ah.

2. Cycle Life

The 2 types of batteries’ life cycle can be 4000+-15000+.

  • 4000+ Cycles (100% DOD)
  • 6000+ Cycles (80% DOD)
  • 15000+ Cycles (60% DOD)

3. Energy


4. Internal Resistance


5. Battery Management System (BMS Board)

Both the Redodo 12V 100Ah and Redodo 12V 100Ah Mini batteries come with a built-in 100A BMS. This BMS provides protection against overcharging, over-discharging, over-current, overheating, and short circuits.

It's important to note that neither battery has low-temperature protection. If the low-temperature protection is crutial for you, look at Redodo 12.8V 100Ah Smart LiFePO4 Battery

6.Charge Method


7. Charge Voltage


8. Recommend Charge Current

20A (0.2C)

9. Max. Continuous Charge Current


10. Max Continuous Output Power


11. Housing Material

ABS (Flame Retardant Plastic)

12. Protection Class


13. Temperature Range

  • Charge: 0℃ to 50℃/32℉ to 122℉
  • Discharge: -20℃ to 60℃/ -4℉ to 140℉
  • Storage: -10℃ to 50 ℃/14℉ to 122℉

14. Multiple Applications

Both the classic and mini versions of the Redodo batteries support up to 4 batteries in series and 4 in parallel (maximum 4S4P configuration). This allows for the creation of a 48V 400Ah battery system, providing 20.48kWh of energy and a maximum load power of 20.48kW. It's an ideal choice for various applications including RVs, solar power systems, home energy storage, and off-grid setups.

applications of lifepo4 battery

Part 2: The Differences Between Redodo 12V 100Ah and 12V 100Ah Mini

The main differences between 12V 100Ah and 12V 100Ah mini are the cells and BMS.

1. Dimension & Weight

Redodo's 12V 100Ah Mini stands out with its innovative cell layout design, which prioritizes safety while also achieving a more compact size without compromising performance. This breakthrough design allows for a precise fitment and ensures that the battery is securely in place to prevent any safety hazards. As a result, the Redodo 12V 100Ah Mini is not only smaller in size, but also offers optimal performance.




12V 100Ah

 L13*W6.77*H8.43 in

 (L329*W172*H214 mm)

24.25 lbs

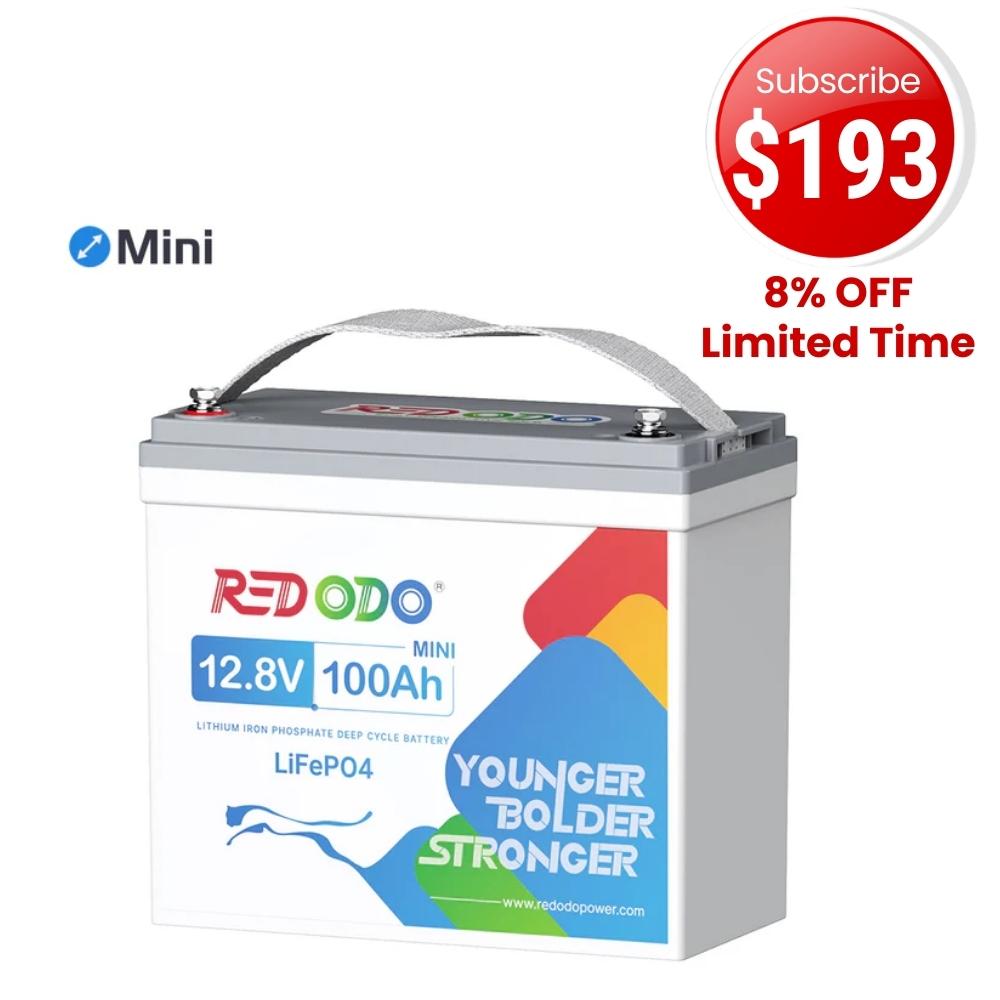

12V 100Ah mini

L10.24*W5.24*H8.96 in

 (L260*W133*H227.5 mm)

19.77 lbs

2. Battery Cells

The classic Redodo 12V 100Ah battery is made of prismatic LiFePO4 cells. These cells have a rectangular shape and come in standard sizes that are easy to manufacture and integrate into battery packs. They are durable and have a higher energy density compared to other types of lithium-ion batteries. This makes them suitable for applications such as energy storage systems, electric vehicles, and backup power systems.

Learn more about prismatic vs pouch LiFePO4 cells.

redodo 12v 100ah prismatic cell

On the other hand, the Redodo 12V 100Ah Mini battery is made of pouch LiFePO4 cells. These cells are flexible and lightweight, making them ideal for portable applications like mobile devices and power banks. They are often used when space and weight are critical factors. Pouch cells are also known for their ability to maintain voltage levels and discharge rates at lower temperatures.

redodo 12v 100ah mini pouch cell

Both batteries have the highest level of safety, as confirmed by UL Test reports. This means that you can trust the safety of both the Redodo 12V 100Ah battery and the Redodo 12V 100Ah Mini battery.

In summary, the classic Redodo 12V 100Ah battery is better suited for applications requiring higher energy density and durability, while the Redodo 12V 100Ah Mini battery is better for portable applications where flexibility and lightweight design are important.

3. Internal Structure

The Redodo 12V 100Ah Mini battery is designed with an optimized internal structure that is both compact and sturdy, ensuring reliable performance. It has undergone rigorous testing to confirm its safety, making it one of the safest options available. With this level of safety, you can confidently install the battery in any direction, even in rough or bumpy conditions, without fear of damage.

However, the classic 12V 100Ah can only be installed upright with post bolts facing up or on its 2 smaller sides.

4. Energy Density

The mini one has the Industry highest energy density: 67.74Wh/lb . While the classic 100Ah one has the energy density of 52.78Wh/lb.

Part 3: Reviews about Redodo 12V 100Ah VS 100Ah mini

Redodo 12V 100Ah Review

Redodo 12V 100Ah Mini Review

Part 4: FAQs about Redodo 12V 100Ah vs 100Ah Mini

1.Can I connect these 2 batteries in series?

No. Since the 2 batteries have different cells and internal structures, it is not recommended to connect these two batteries together or it would be harmful to their individual lifespans.

2.Can they be used as starting batteries for golf carts?

No, neither the Redodo 12V 100Ah nor the Redodo 12V 100Ah Mini batteries are suitable for use as starting batteries for golf carts. Both of these batteries are deep-cycle batteries, which are specifically designed to provide a consistent amount of power over an extended period of time. Starting batteries, on the other hand, are designed to deliver a high burst of power for a short duration. Using a deep-cycle battery as a starting battery could potentially damage the battery and reduce its overall lifespan.

3.Do the 12V 100Ah and mini batteries have Bluetooth functionality?

The built-in Battery Management System (BMS) of the Mini LiFePO4 and 12V 230Ah Plus batteries from Redodo is a hardware version and cannot be utilized to gather data through PC software. While Redodo batteries can be connected to a monitor for monitoring purposes, the built-in BMS does not have the capability to communicate with the monitor.

redodo lifepo4 battery management system

4.How to charge the batteries?

It’s not recommended to charge LiFePO4 batteries with traditional lead-acid battery charger. There are 3 reliable ways to charge, solar panels, LiFePO4 battery charger and generator.

Which one Should I Choose?

The Redodo 12V 100Ah Mini battery is a smaller and lighter alternative to the classic version. Despite its compact size, both batteries offer the same high-performance specifications. These include a maximum continuous discharge current of 100A, a maximum load power of 1280W, and an available capacity of 1280Wh. If you prioritize portability and prefer a more compact battery, the Mini version would be the ideal choice for you. The price difference between the two options is approximately $40.

Furthermore, Redodo provides a comprehensive warranty period for their batteries. For new batteries, a five-year warranty is offered. For batteries in used-like new condition, the warranty period is four years. If you have any additional questions or concerns, you can contact the Redodo team at service@redodopower.com, and we will be more than happy to assist you.
