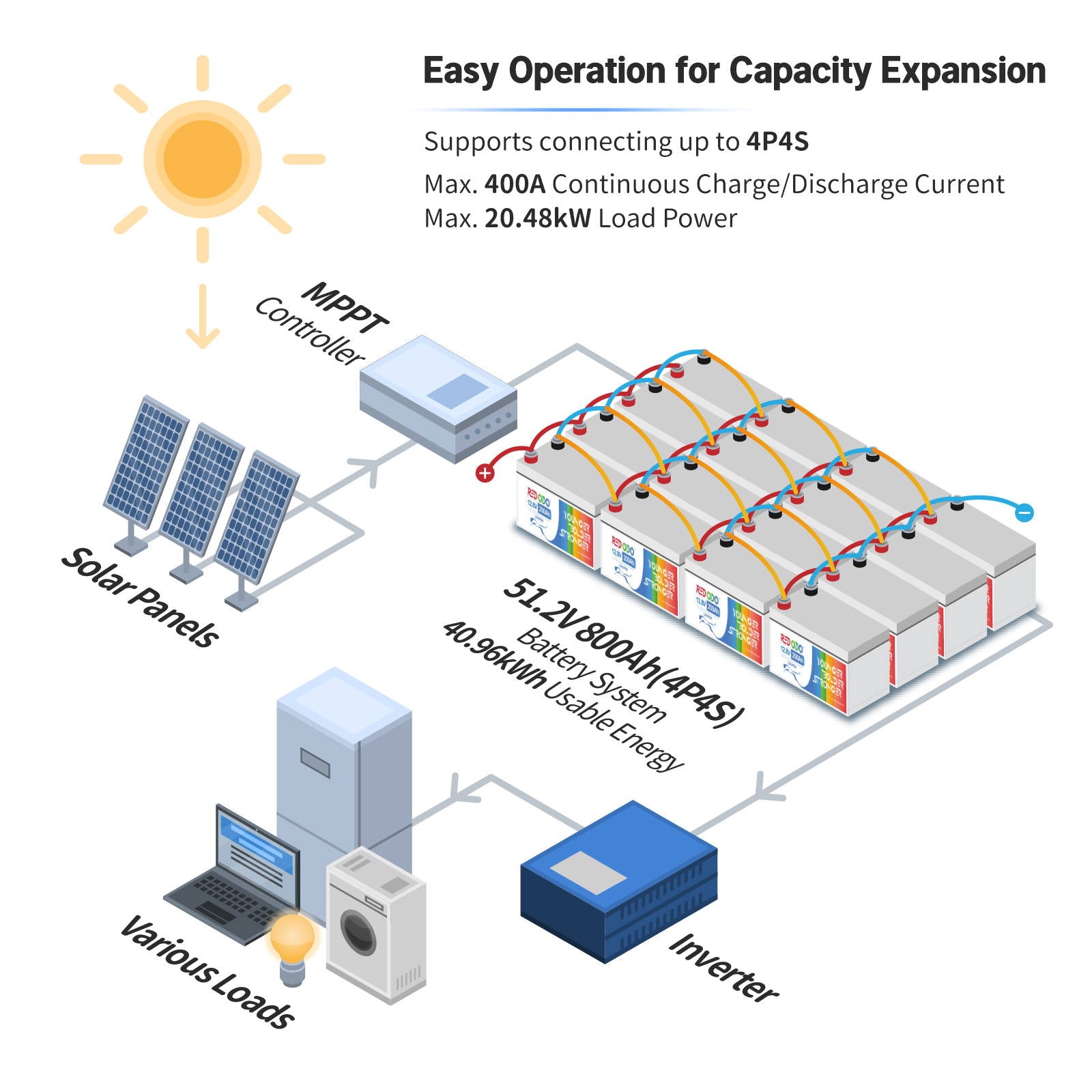

Capacity Expansion

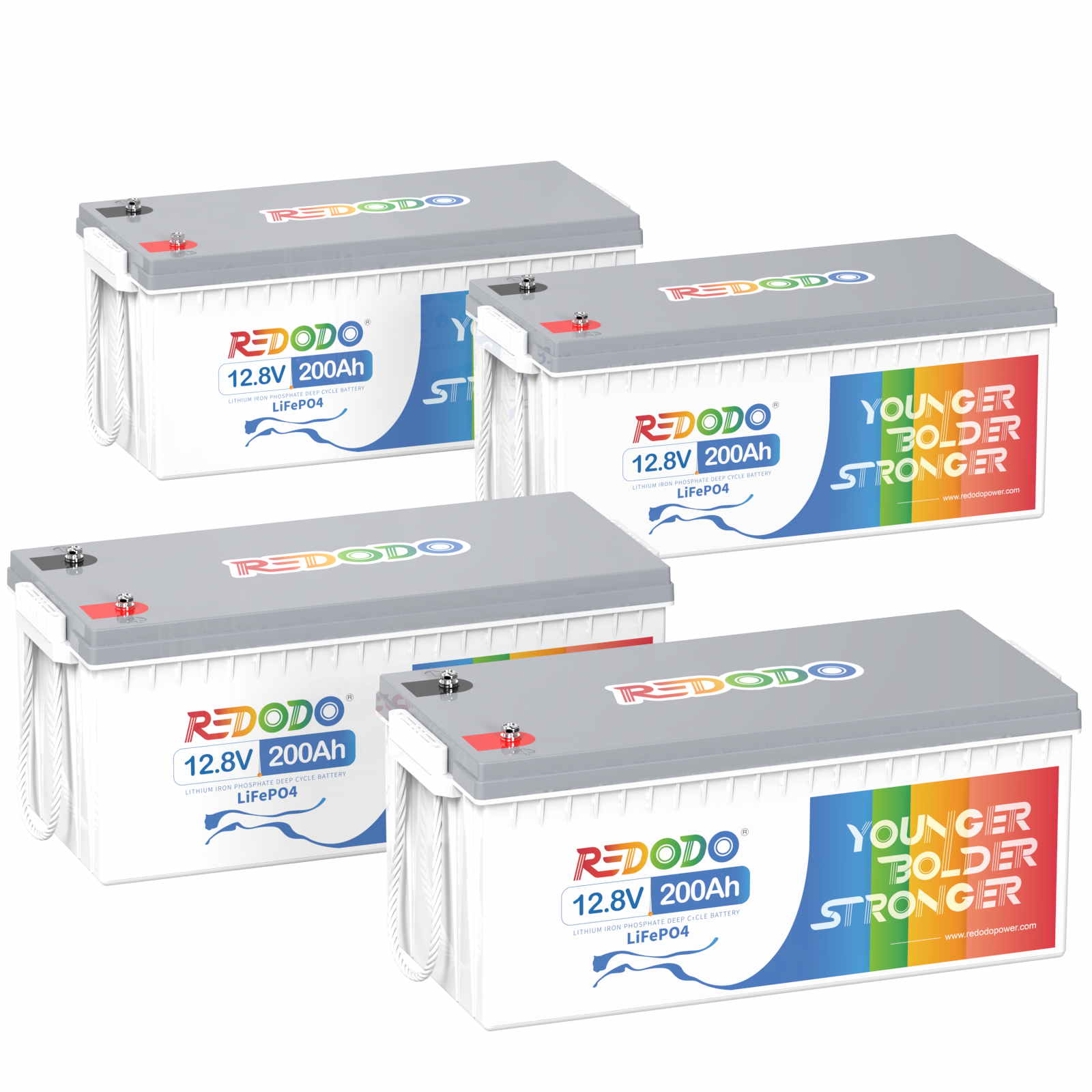

Support up to 4 identical batteries for SERIES connection to 51.2V200Ah battery system

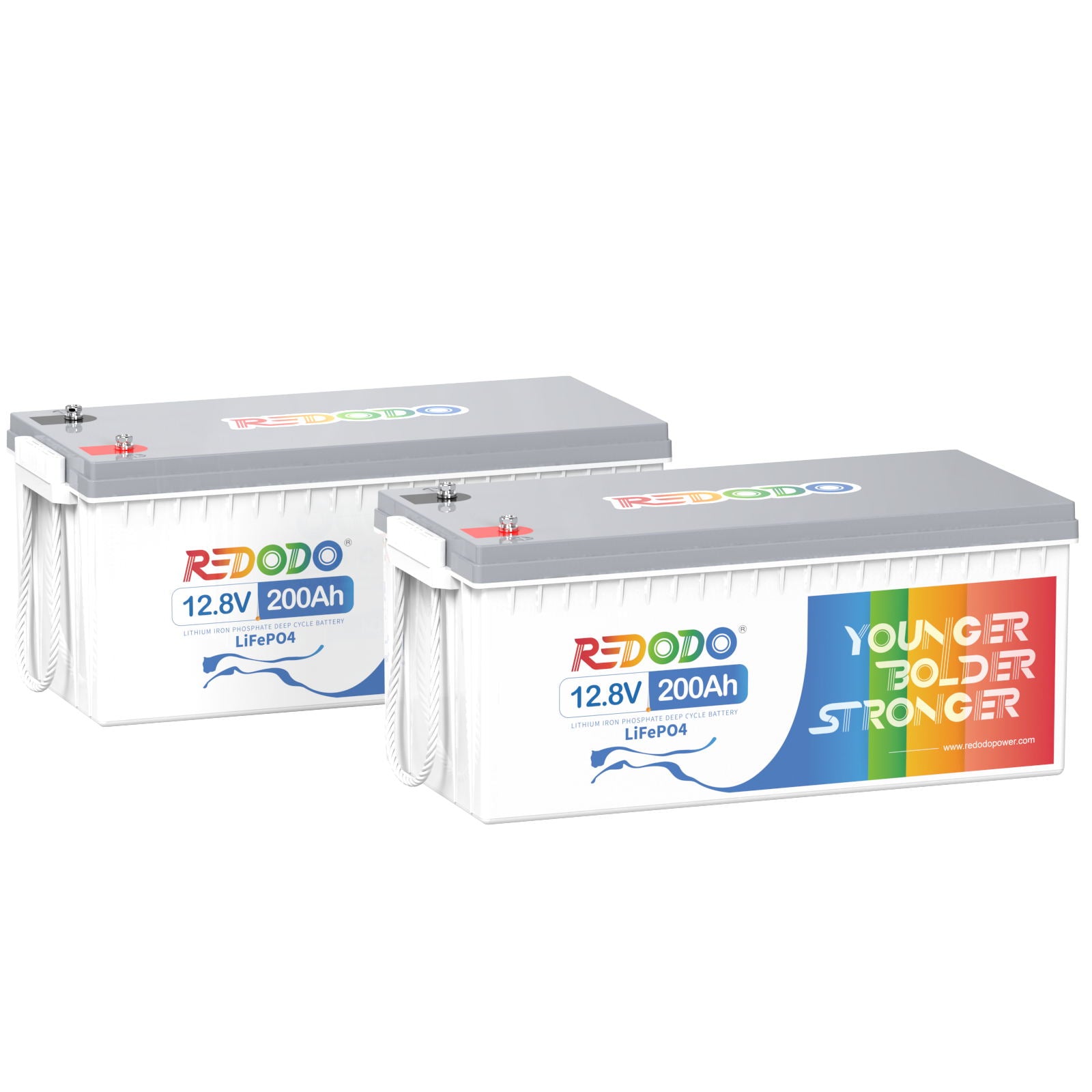

Support up to 4 identical batteries for PARALLEL connection to 12.8V800Ah battery system
To connect in series or /and parallel, batteries should meet the below conditions:
a. identical batteries with the same battery capacity (Ah) and BMS (A);
b. from the same brand (Note: Redodo battery models can be connected to Zooms battery models.)
c. purchased in near time (within three months)
Kindly Note: Redodo 200Ah lifepo4 battery can not be connected with Redodo 200Ah pro lifepo4 battery, however it can be connected with Zooms 200Ah lifepo4 battery

40Amp LiFePO4 Battery Charger
Regarding the charger, we recommend battery charger that supports LiFePO4 battery charging. To fully charge the battery, the DC charging voltage should be between 14.2V~14.6V, and charging current less than 100A. And we usually recommend 0.2C charging current, that is 40A charging current and it will cost around 5hrs to full charged it.

Green Solar Charging
Recommended Solar Panels: ≥600W, it will cost around 1day to full charge it, as the effective light time is 4-5hrs per day)

Generator Charging
We suggest that you add an 40A DC to DC charger if you use the generator to charge the battery

Model comparison
Table header 0 | 12V 100Ah | 12V 200Ah | 12V 200Ah Pro | 12V 200Ah Plus | 12V 300Ah | 12V 410Ah | 24V 100Ah |
---|---|---|---|---|---|---|---|
Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 25.6V |
Charge Voltage | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | 29.2V |
Energy | 1280Wh | 2560Wh | 2944Wh | 2560Wh | 3840Wh | 5248Wh | 2560Wh |
BMS Board | 100A | 100A | 100A | 200A | 200A | 250A | 100A |
Max. Load Power | 1280W | 1280W | 1280W | 2560W | 2560W | 3200W | 2560W |
Weight | 25.4lbs | 45.85lbs | 62.2lbs | 49.6lbs | 62.8lbs | 82.3lbs | 48.1lbs |
