Mini Giant – Built for Long Trips of 4 Days or More
Tired of sacrificing power for space in your RV? Meet the ultimate off-grid battery. The Redodo 12V 320Ah Mini powerhouse is designed for weekend getaways and long-distance travel, delivering maximum capacity in a minimal footprint. Power for over 4 days off-grid—you can finally stop worrying about energy and start creating lasting memories.

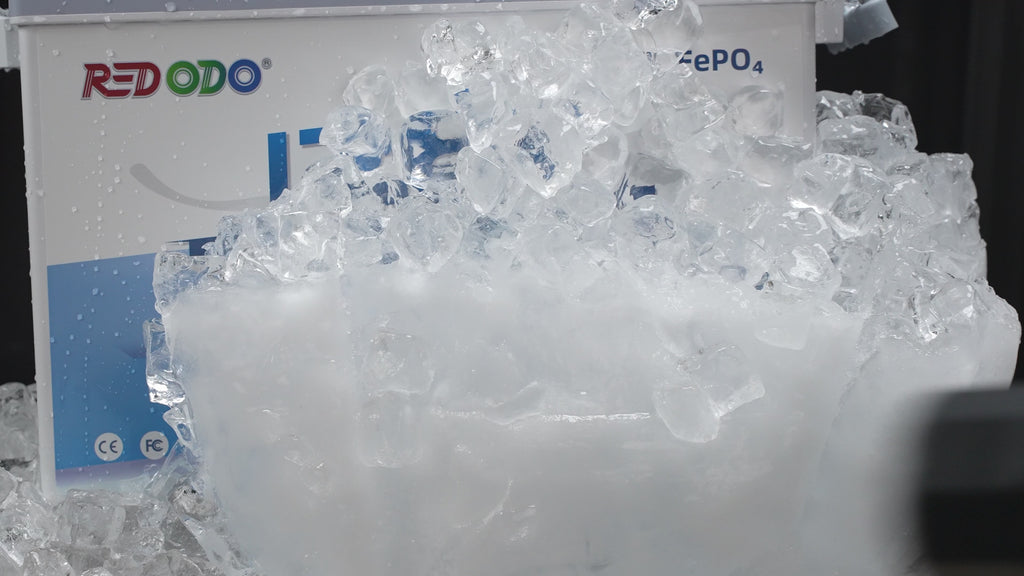

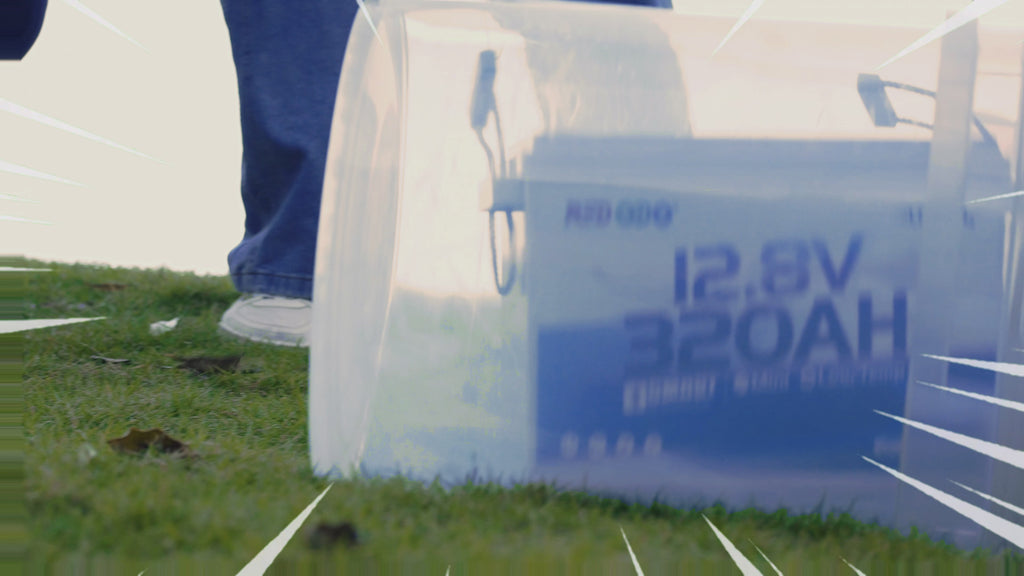

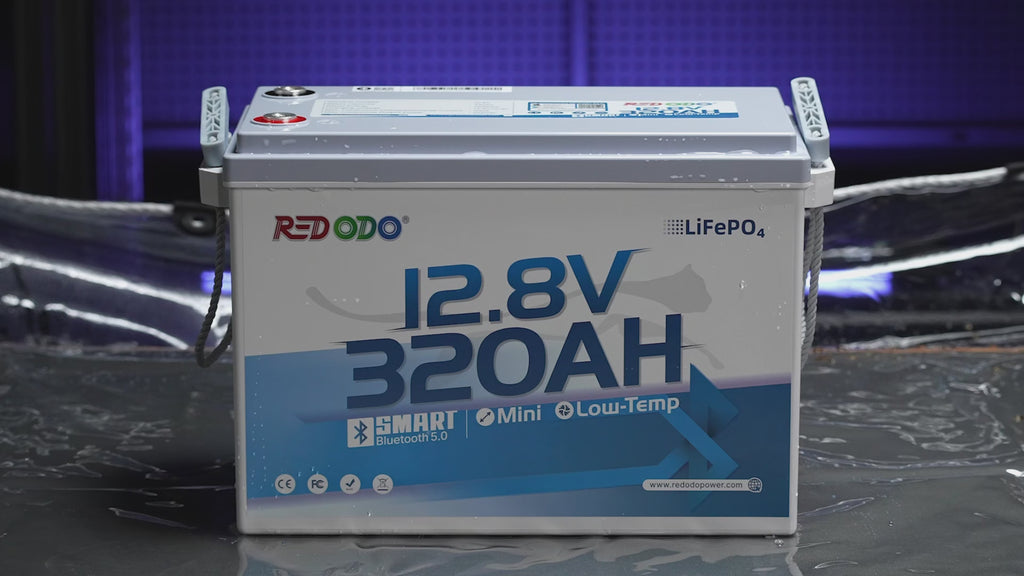

Unbreakable Power: Real-Life Torture Tests
4 Reasons Why Redodo 12V 320Ah Mini Lithium Battery is the Best Choice
Go For Days, Not Hours
With a massive 4kWh of capacity, the Redodo 12V 320Ah LiFePO4 battery powers your life on the road for days on a single charge. Keep the lights on, the fridge cold, your devices charged—Your journey shouldn't be limited by a battery, and your quality of life shouldn't be interrupted unexpectedly.
Why Sacrifice Power for Space?
Big Power Has Never Been So Small

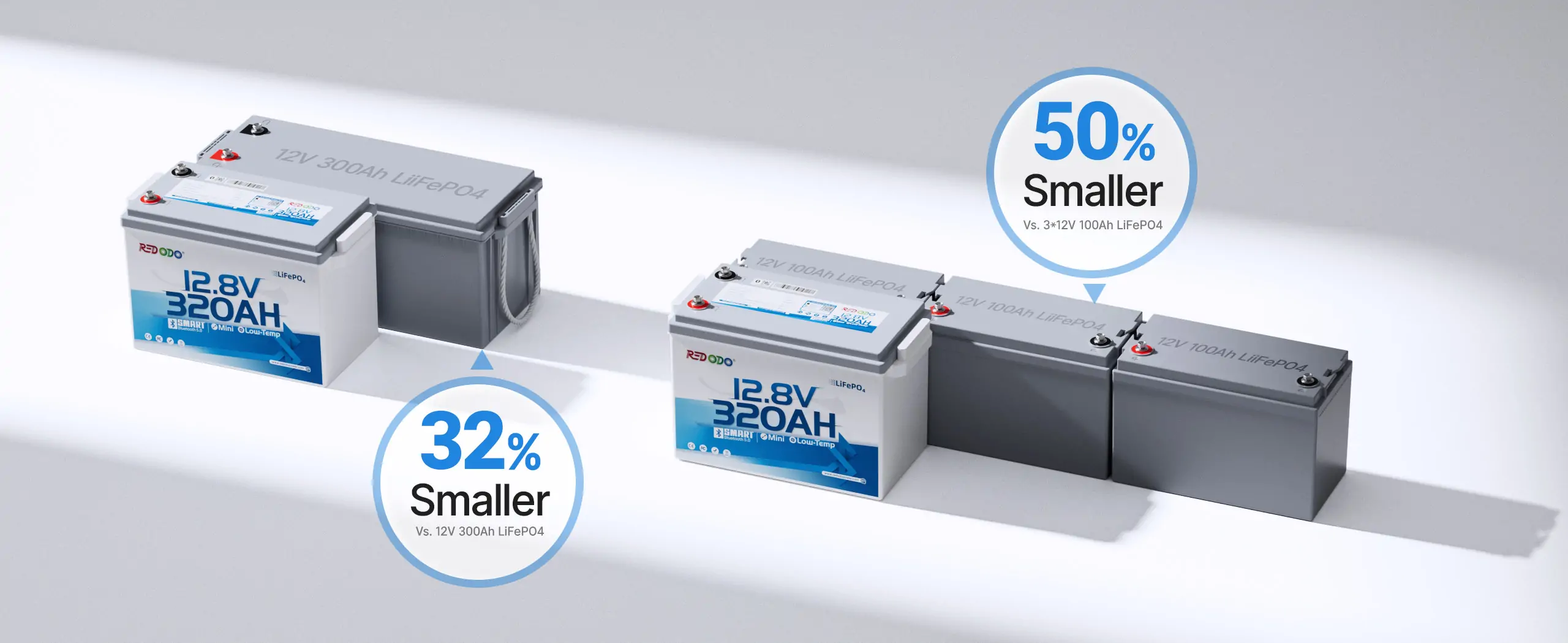

Get both power and small space, the Redodo 12V 320Ah Mini Lithium Battery is 32% smaller than a standard 12V 300Ah lithium battery and a staggering 50% smaller than three 12V 100Ah Group 31 lithium batteries it replaces. Free Up Space for What Matters.

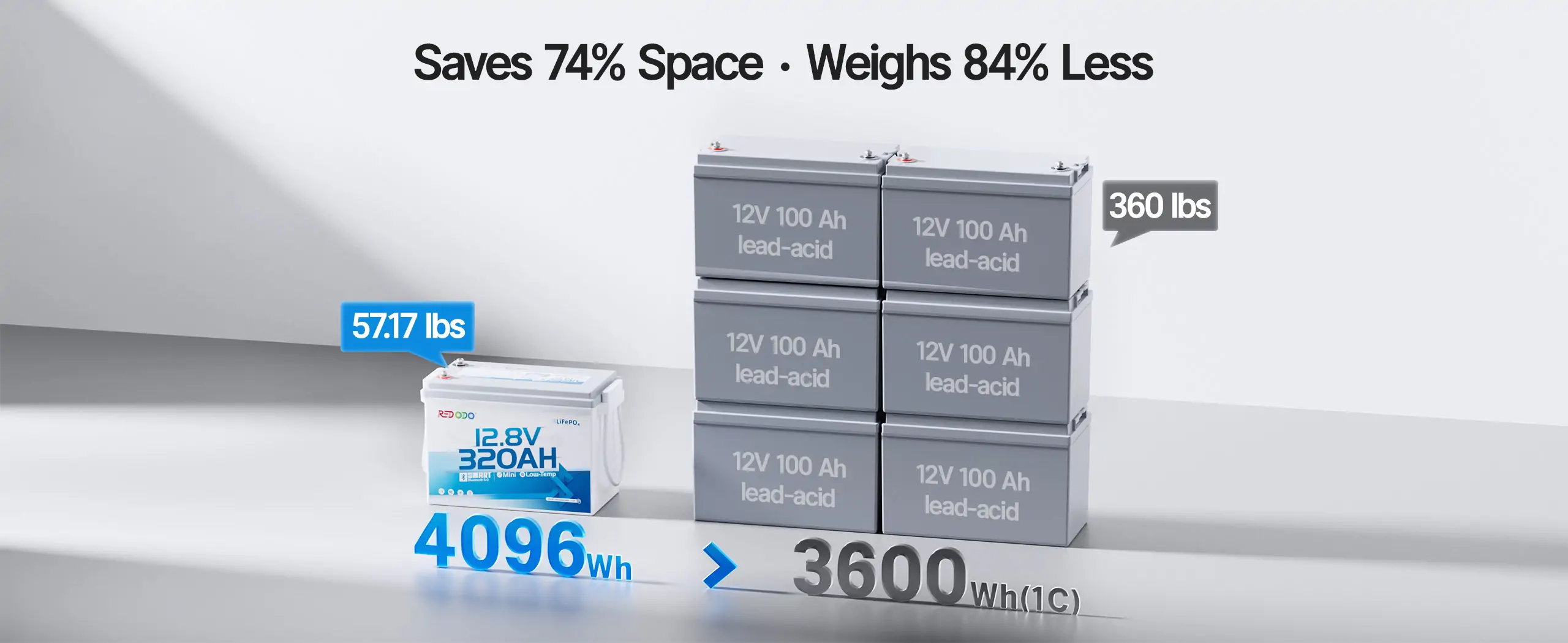

The Ultimate Upgrade: Why Are You Still Using 6 Batteries When 1 Will Do?
Redodo's revolutionary 12V 320Ah lithium battery does the work of six bulky, heavy 12V 100Ah lead-acid batteries in a fraction of the space. Reclaim a massive 74% of your battery box and shed a back-breaking 84% of the weight. Unlike lead-acid that fades fast, our lithium power delivers every bit of its promised capacity.

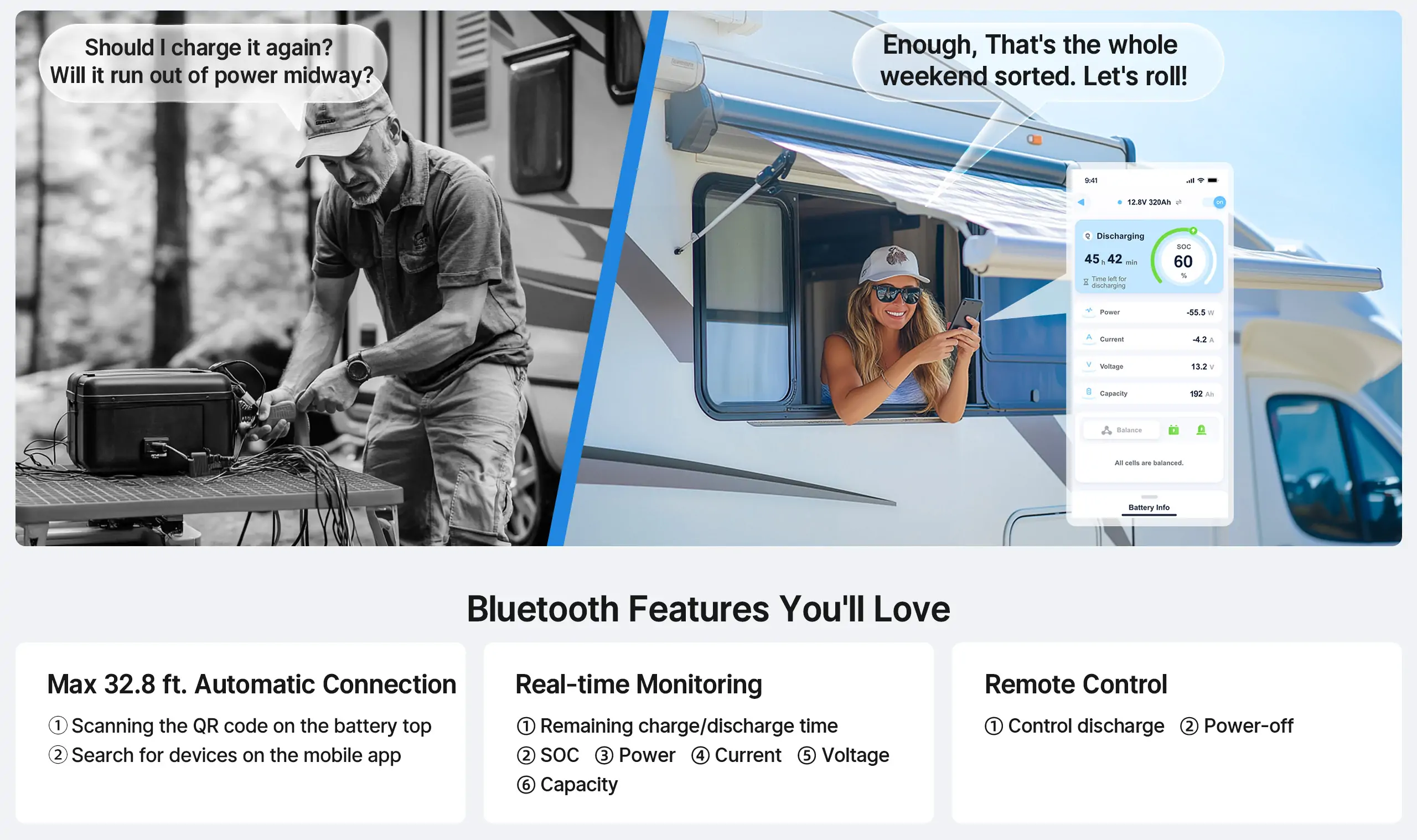

Check Your Power, From Your Couch
The Best User-Friendly Bluetooth App on the Market
Say goodbye to last-minute surprises and frantic checks. The Redodo 12V 320Ah Mini Battery comes with the best User-Friendly Bluetooth app on the market. Before you set off, just a quick glance at your phone lets you check the exact charge level. Leave the anxiety behind and embark on every adventure with complete confidence.

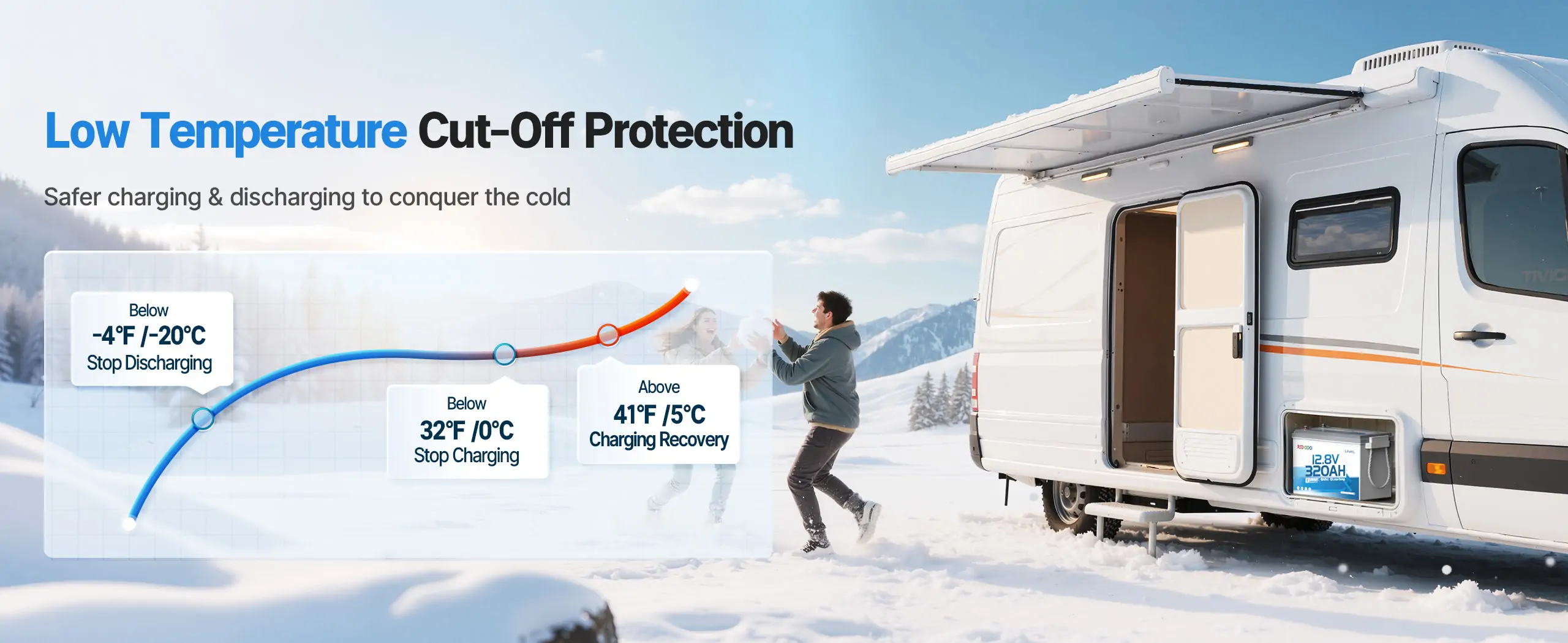

Low Temperature Cut-Off Protection
Brew, Blend, and Binge-Watch—All at Once.
Bring All the Comforts of Home, Powered by 2560W
With a massive 2560W of output power, the Redodo 12V 320Ah LiFePO4 Bluetooth battery delivers the raw power to run your high-wattage essentials simultaneously. Your morning espresso. Your evening blender. Your weekend movie marathon. 2560W powers your entire lifestyle.

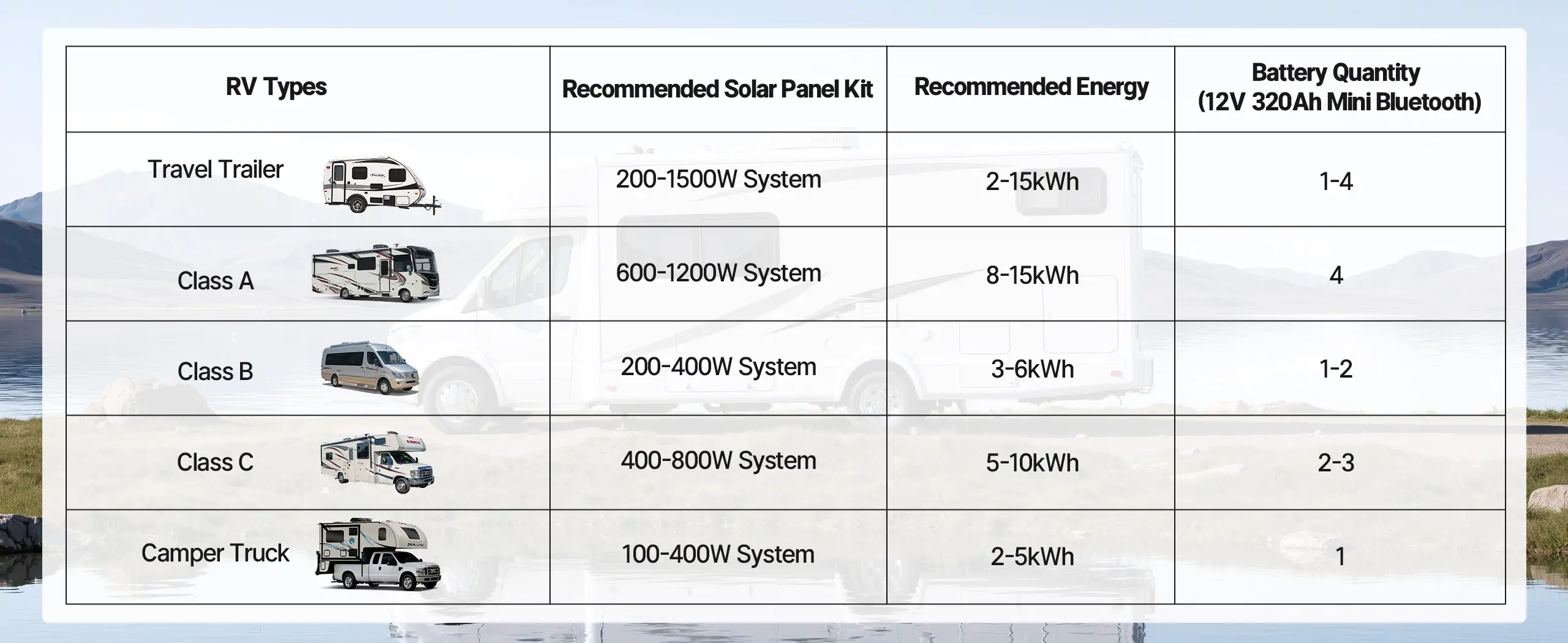

Your RV Power Guide: How Much Battery Do You Really Need?
We've created a simple guide to help you figure out the perfect battery setup for your needs. Whether you're weekend warriors in a van or full-time families in a large motorhome, see how our 12V 320Ah lithium batteries can be combined to deliver exactly the power you need for off-grid freedom.

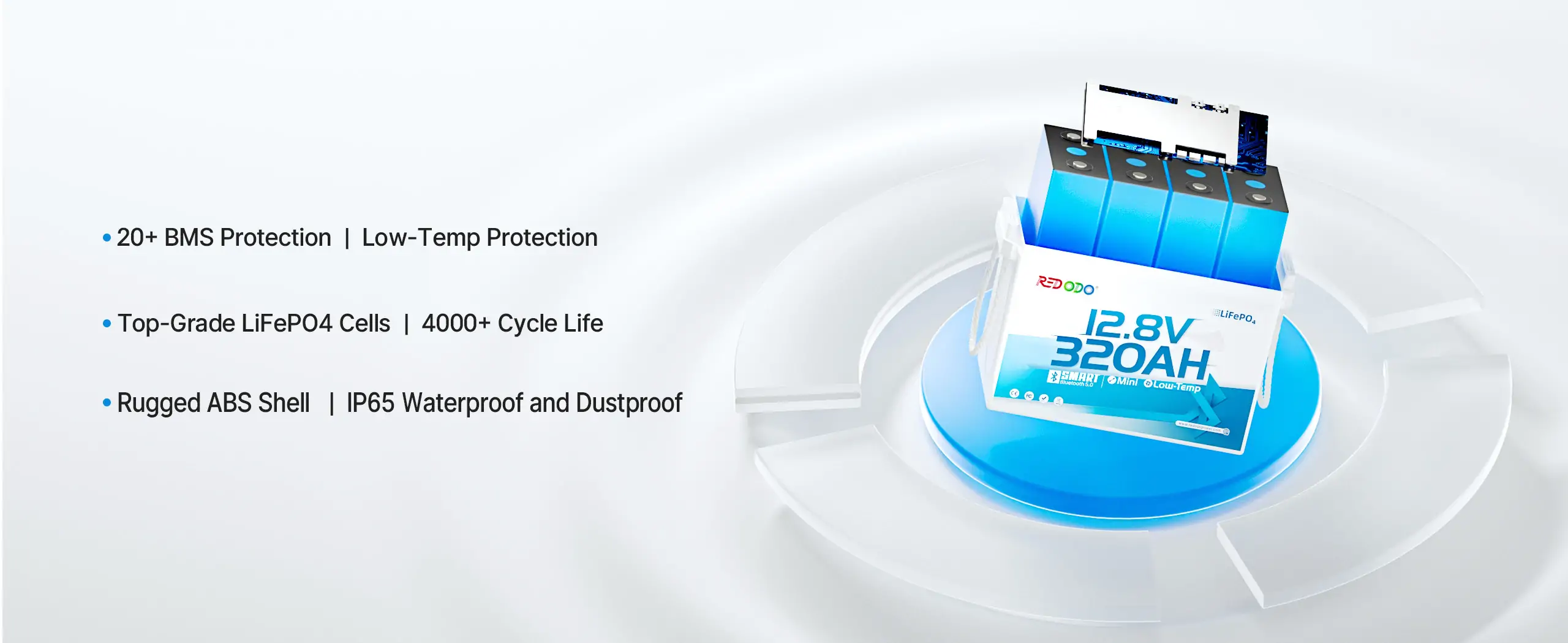

Engineered for Reliability, Down to Every Detail

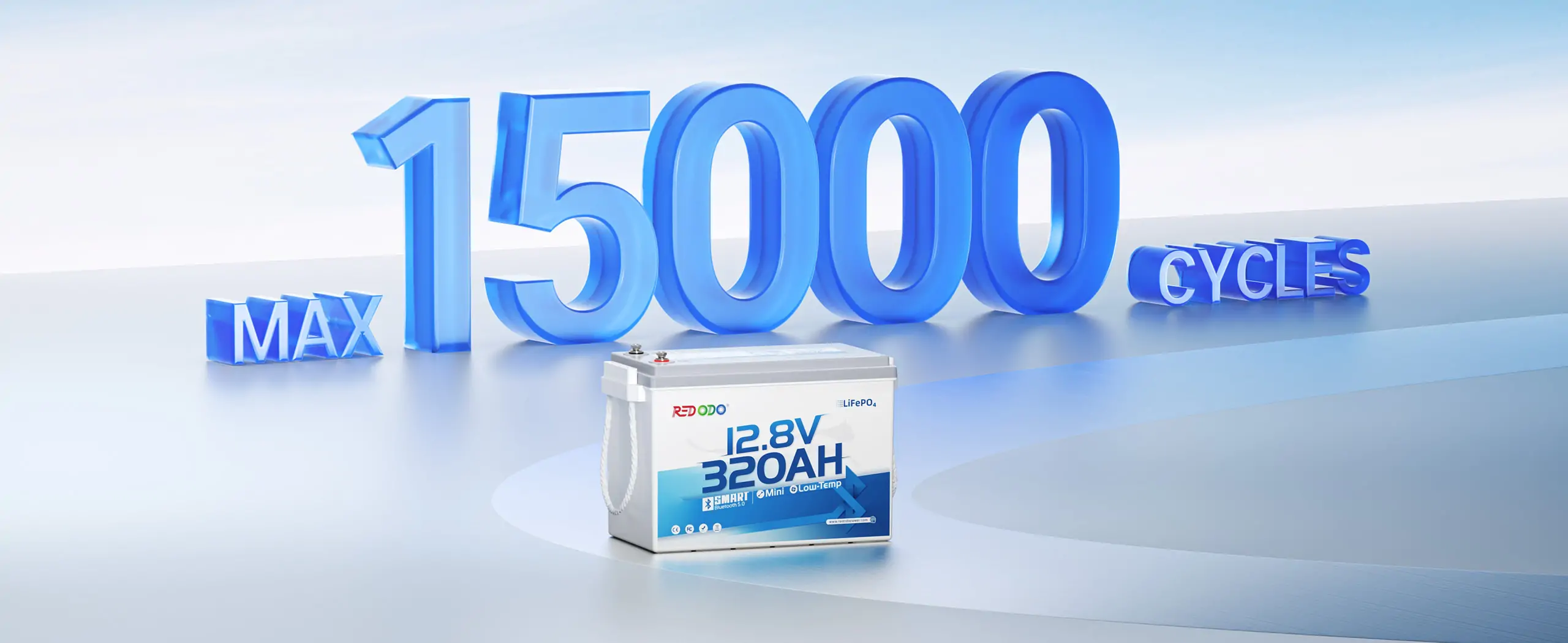

Buy It Once. Power a Decade
Tired of the endless replace-and-spend cycle? A typical lead-acid battery supports up to 500 cycles before it quits, forcing you to buy another... Redodo LiFePO4 battery is engineered for endurance, delivering 4000+ deep discharge cycles—that's over 10 years of reliable service.

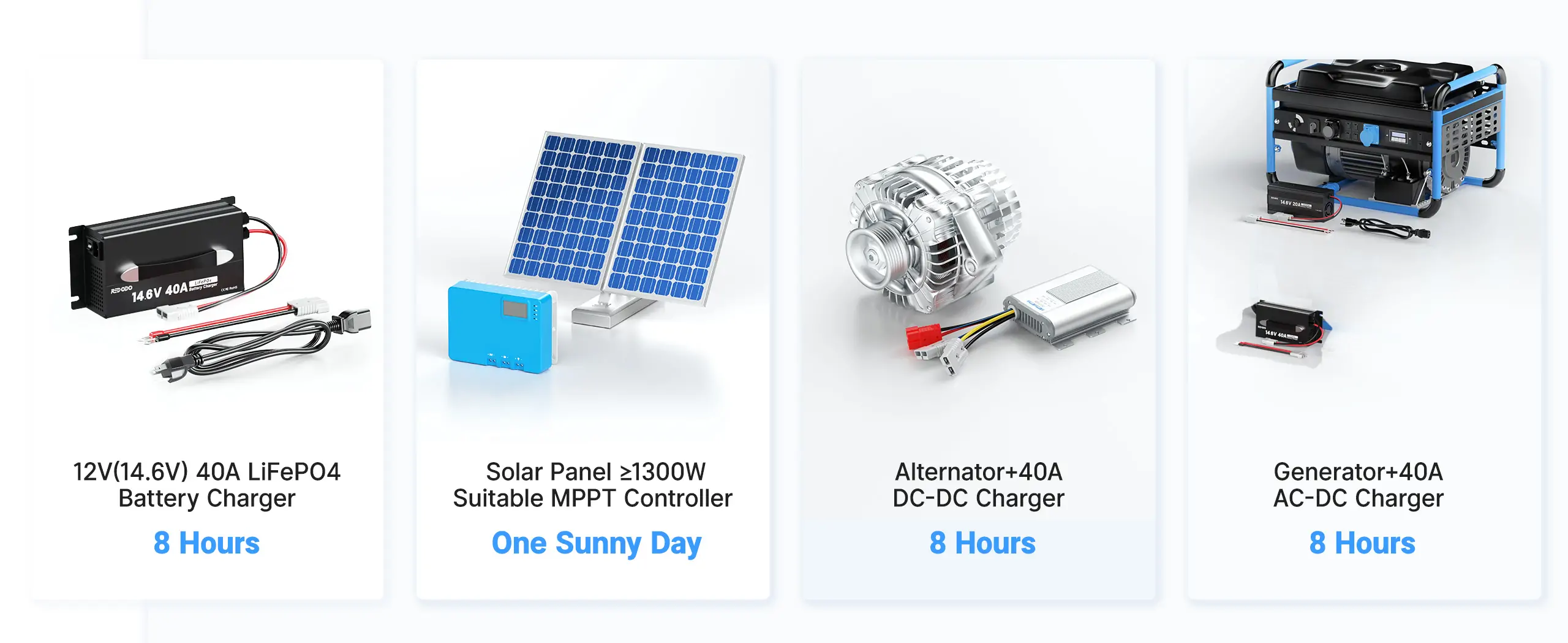

8 Hours to Full: Charge Faster, Adventure Sooner
For All Mobile Explorers or Off-Grid Dreamers:
Live with Freedom & Confidence
Redodo 12V 320Ah Mini Bluetooth lithium battery gives you the confidence to travel anywhere, with all your beloved belongings.
Join the Redodo Family
Where Every Purchase is Backed by Care and Quality
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5-year
Cycle Life：
4000-15000
Nominal Voltage：
12.8V
Rated Capacity：
320Ah
Energy：
4096Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Bluetooth：
Yes
BMS
BMS：
200A
Max. Continuous Output Power：
2560W
Max. Continuous Charge Current：
200A
Max. Continuous Discharge Current：
200A
Surge Discharge Current：
1000A@1S
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
64A (0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：
-10℃ to 50℃ / 14℉ to 122 ℉
Low-Temperature Protection：
Yes
Low-Temperature Charging Protection Auto Recovery：
5°C/41°F (Battery Temperature)
OTHERS
Terminals：
M8 5/8" [16mm]
Weight Approx.：
57.17lbs
Size：
L15.12*W7.64*H9.76 inch
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: What are the advantages of this 320Ah Mini battery compared to the Redodo 300Ah lithium battery?
A:
The 12V 320Ah Mini offers the advantages over the 12V 300Ah model:
• More capacity: an extra 20Ah gives you longer runtime.
• More compact: 32% smaller than the Redodo 12V 300Ah Lithium Battery, saving valuable install space.
• More advanced: The 320Ah Mini battery features advanced BMS with smart Bluetooth monitoring and low-temperature protection.
Q: How long will the 12V 320Ah lithium battery last?
A:
The runtime depends on the battery’s energy (Wh) and the power draw of your devices (W). You can calculate it with the same formula:
Run Time (hours) = Battery energy (Wh) ÷ Power (W)
The Redodo 12V 320Ah Mini battery stores 4,096Wh of energy (12.8V × 320Ah). If your device consumes 100W, then:
Run Time = 4,096Wh ÷ 100W = 40.96 hours
So, a 100W appliance can run for about 41 hours continuously on a full 320Ah lithium battery.
For the lifespan, the 12V 320Ah LiFePO4 battery can last 4,000–15,000 cycles with proper use.
Q: Does the 12V 320Ah LiFePO4 battery for deep cycle use?
A:
Yes. The battery is designed for deep-cycle applications. It delivers stable power, consistent voltage, and supports repeated deep discharges. Perfect for RV campers, off-grid solar, boats, trolling motors, home storage, and other long-runtime systems.
Q: Can I connect multiple the batteries in parallel or series?
A:
Yes. The 12V 320Ah Mini supports up to 4 parallel or 4 series connections to increase total voltage or storage.
Q: Does the 320Ah Mini battery include protection for cold charging or safety?
A:
Yes. The built-in advanced BMS is equipped with low-temperature cutoff protection. Charging automatically stops when the battery is below 32°F (0°C) and resumes once it warms above 41°F (5°C). Discharge also stops at -4°F (-20°C) to keep the battery safe in cold conditions.
