Lightweight Power—The Freedom of 3+ Days Fishing
Built for anglers who want to spend entire weekends on the water without worrying about charging, battery swaps, or unnecessary weight holding their boat back. Redodo 12V 120Ah powerhouse provides up to 3 days of continuous trolling motor power without the burden of heavy traditional batteries. Its featherlight 23.8 lbs construction not only makes transport a breeze but also enhances your boat's performance, allowing for faster speeds and greater maneuverability.
Designed Around How Anglers Actually Fish
Every feature is built to solve real frustrations on the water—from short runtime and heavy batteries to power uncertainty and complicated upgrades. Smarter Power in Every Detail

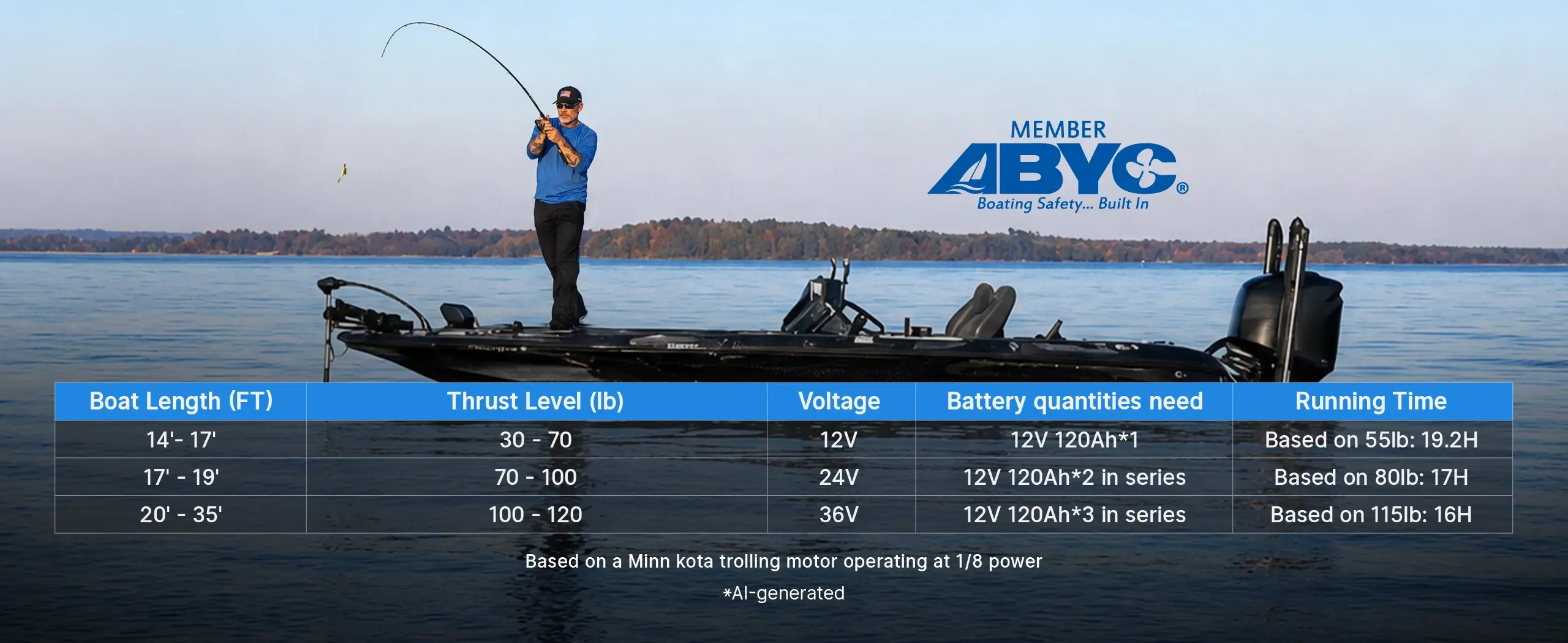

Stable Output for 12V / 24V / 36V Trolling Motor Systems.
Run your trolling motor, fish finder, and electronics for hours—or days—without power drops.Compatible with major brands like Minn Kota、Garmin、Newport Vessels. Consistent performance even under continuous load.

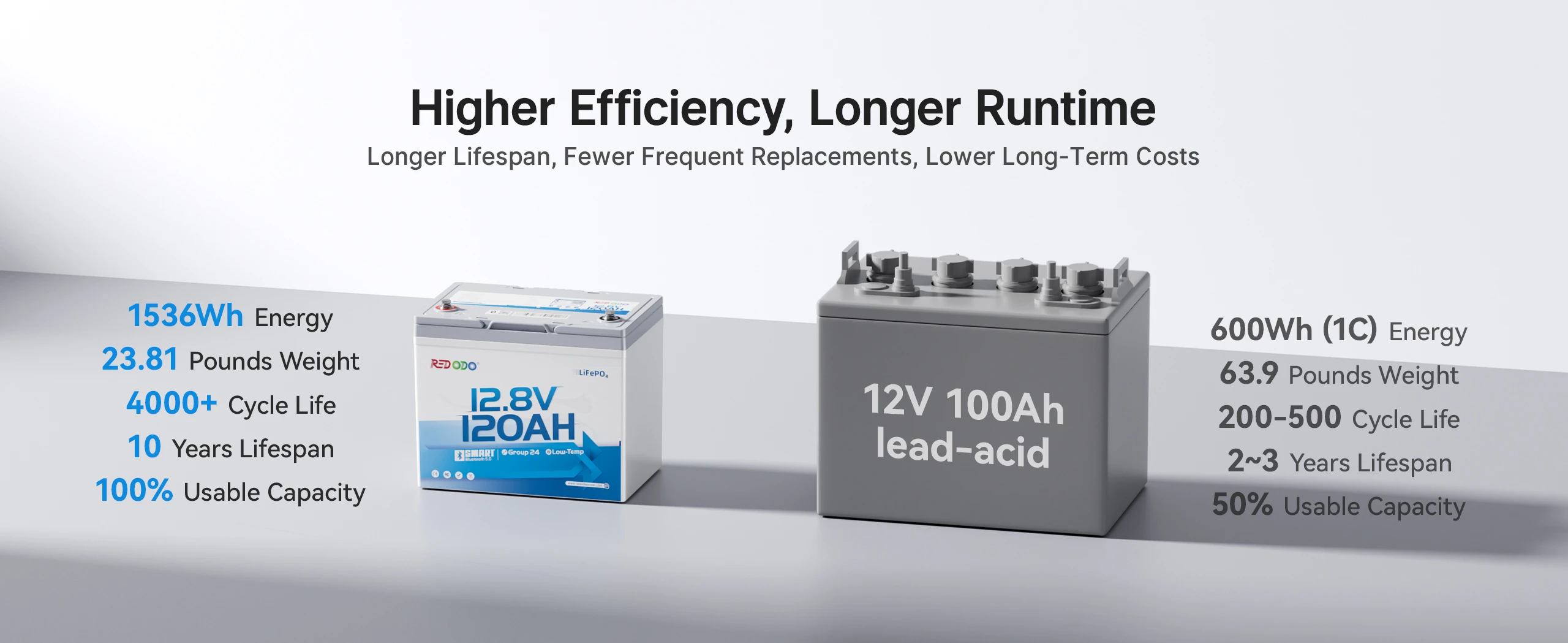

Tired Of Old Lead-Acid Hassles？ Time to Switch Smart
1 Redodo 12V 120Ah Group 24 LiFePO4 battery replaces 2 12V 100Ah Lead-acid battery, 2.56X Longer Runtime, 63% lighter, and 3X longer lifespan —freedom to explore, redefined, Upgrade Now!
1536Wh LiFePO4 for Endless Exploration.
Unlock the full potential of your outdoor pursuits. Our 1536Wh LiFePO4 battery is designed to maximize your adventure time by minimizing power worries. With enough energy for three days of trolling continuous use, you can explore further, fish longer, and live freely without compromise.
Why Let Heavy Batteries Slow You Down?
Our LiFePO4 battery, weighing a mere 23.81lbs, is engineered for agility. Enjoy a significant 63% weight reduction compared to typical lead-acid options, translating to a 0.5mph increase in boat speed and better balance. This isn't just a battery; it's your competitive edge on the water.
Upgrade Your Power, Not Your Box

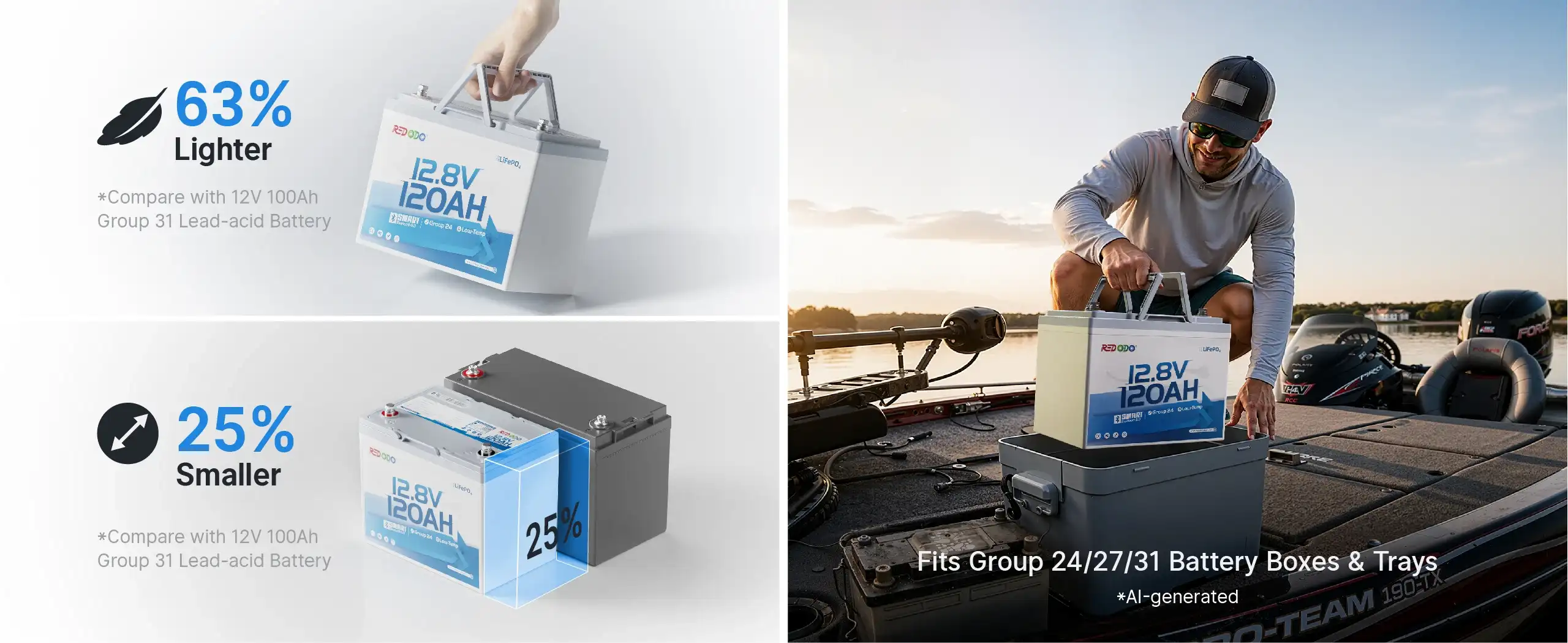

Group 24 Same size, Fits directly into existing Group 24/27/31 battery compartments. Upgrade instantly without rewiring or modifications—get longer runtime, faster performance, and no more heavy lifting or frequent charging.
No More Power Anxiety on Your Trips
Say goodbye to last-minute surprises and frantic checks. The Redodo 12V 120Ah Group 24 Battery comes with the best User-Friendly Bluetooth app on the market. Before you set off, just a quick glance at your phone lets you check the exact charge level —no guessing, no unexpected shutdowns on the water.
Ultimate Protection, Unbound Exploration
Experience the Redodo advantage with our signature white casing, specifically designed to minimize solar absorption and keep your battery running safer under direct sunlight. Engineered for the extremes, this powerhouse also features intelligent low-temp charging protection and an IP65 waterproof rating, providing a complete shield against freezing cold, dust, and rain.

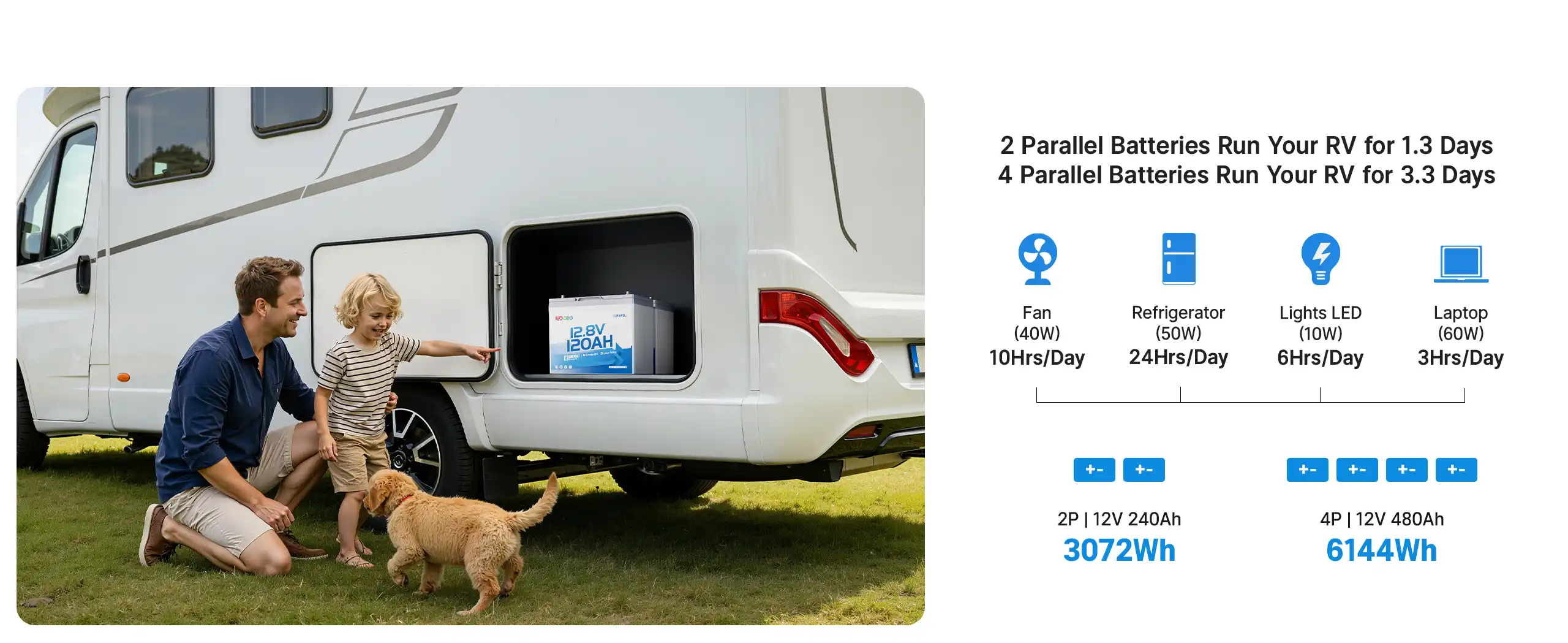

From the Highway to the Water: Redodo Powers Your Freedom
Ditch bulky lead-acid! 2X runtime at half the weight. Bluetooth tracks exact capacity—plan campouts or voyages with precision, no surprises.

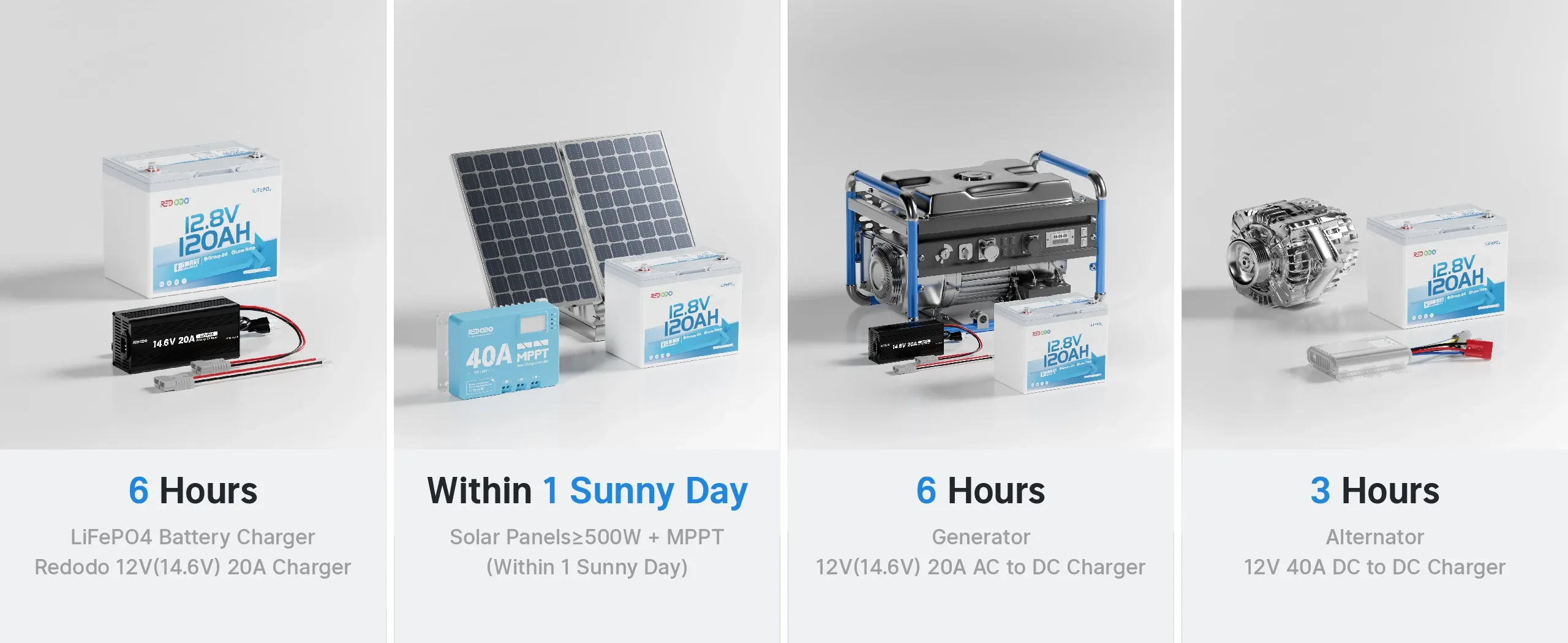

3 ~ 6 Hours Fast Charging
The Redodo 12V 120Ah Group 24 Bluetooth LiFePO4 battery supports multiple charging methods, including lithium iron phosphate chargers, solar panels, generators, and alternators, allowing for a full recharge in as little as 6 hours, greatly improve battery utilization efficiency.
Wide Applications of the Group 24 Size Lithium Battery
Whether it's for RV, boat, off-grid, or home backup systems, the Group 24 Bluetooth lithium battery can provide you with stable power and let you easily monitor the battery status anytime, anywhere!
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000 times (25°C,0.2C,100% DOD)
Nominal Voltage：
12.8V
Rated Capacity：
120Ah
Energy：
1536Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
Certified by FCC, CE, RoHS, UN38.3, FCC ID, MIC & Complies with the UL 1973 standard
Bluetooth：
YES
BMS
BMS：
120A
Max. Continuous Output Power：
1536W
Max. Continuous Charge Current：
120A(1C)
Max. Continuous Discharge Current：
120A(1C)
Surge Discharge Current：
600A @ 1 second
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
24A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
Yes (32℉/0℃)
Low-Temperature Charging Protection Auto Recovery：
Yes (41℉/5℃)
OTHERS
Terminals：
M8*16 mm
Weight Approx.：
23.81lbs
Size：
10.24*6.61*8.27inch
Housing Material：
ABS
Protection Class：
IP65
