What Size Solar Charger Do I Need for Boat Battery?

Keeping your boat battery charged is essential for a stress-free day on the water. Whether you’re powering navigation lights, a trolling motor, or onboard electronics, solar charging boat batteries is an eco-friendly and convenient solution. But to get the best results, you need to know what size solar charger for boat battery is right for you.

In this guide, we’ll cover how to size a solar panel for your marine battery, the factors to consider, and tips for setting up an efficient solar charging system for boats.

Why Use Solar to Charge a Marine Battery?

While you can recharge boat batteries with a shore-power charger, your engine’s alternator, or even a small generator, these methods rely on fuel or access to an outlet. Using solar power to charge a marine battery offers a cleaner, quieter alternative:

• Unlimited renewable energy: Panels collect power as long as the sun is shining, giving you independence from fuel or shore hookups.
• Silent operation: Unlike generators, solar panels make no noise. Solar marine charging perfect for anglers, sailors, and those seeking peace on the water.
• Low maintenance: Once installed, solar systems require only occasional cleaning and inspection. There are no moving parts to wear out.
• Cost savings: After the initial investment, sunlight is free. You’ll reduce fuel bills and maintenance costs.

How Does Solar Charger System Work on Boats?

A solar charger system turns sunlight into electricity and feeds it to your solar battery through a charge controller. Here’s the basic flow:

1. Solar panels collect sunlight and produce DC electricity.
2. Charge controller regulates voltage/current to protect the battery from overcharging.
3. Battery stores power for running motors and onboard devices.

Because they work silently and don’t require shore power, solar chargers are perfect for boats that spend time away from marinas. Even on cloudy days, panels can deliver a trickle charge to keep your battery topped up.

Key Components of marine Solar Systems

Once you understand how solar charging works, you’ll know its key components: solar panels, a charge controller, and a battery. Let’s dive into each in detail.

1. Solar Panels

Panels come in rigid, semi-flexible, and folding/suitcase styles. Rigid panels are durable for permanent mounting, flexible panels conform to curved decks, portable panels suit anglers or kayakers.

2. Charge Controller

A solar charge controller regulates power from the panel to the battery, ensuring safe charging. Here are two main types:

• PWM (Pulse Width Modulation): Affordable for small, low-watt setups.
• MPPT (Maximum Power Point Tracking): Captures more energy from each ray of sun. More efficient for higher-wattage panels.

3. Marine Batteries

Marine batteries store your harvested energy. Options include lead-acid, AGM, and lithium (LiFePO4). Lithium is the most efficient and lightweight, with thousands of deep cycles and no maintenance.

Tips: Always use marine-grade cabling, stainless hardware, and waterproof fuses for durability in saltwater environments.

What Size Solar Panel Do I Need for My Boat?

Choosing the correct solar panel depends on:

• Battery capacity (Ah): A deep-cycle marine battery may be rated at 100Ah. This number determines how much energy your battery can store, and how large your solar panel should be.
• Daily power consumption: Estimate the watt-hours (Wh) of your trolling motors and marine electronics, like fish finders, radios, pumps, lights, or refrigerators.
• Sunlight availability: To find the right panel size, divide your daily energy use by the average sun hours in your location.

Example:

Fish finder: 30W × 5h = 150Wh

Cabin lights: 20W × 3h = 60Wh

Ham Radio: 10W × 2h = 20Wh

Total = 230Wh per day

If you receive 5 sun hours for per day: 230 ÷ 5 = 46W

A 50W solar panel covers your use, but sizing up to 80–100W gives you a buffer for cloudy days or extra devices.

Recommended Solar Panel Size on Boats

Tips:

• For maintaining a fully charged battery (no heavy load), a small 10–30W solar charger is enough.
• For powering accessories daily, choose 50–100W.
• For high-demand setups like trolling motors or fridges, 150–200W or more is recommended.

What Size Solar Charge Controller Do I Need for My Boat?

Choose a controller rated for the voltage of your battery (12V or 24V) and the current output of your panel. For instance, a 100W panel at 12V produces about 5–6A, so a 10A controller is ideal.

How to Calculate Solar Charge Controller Size?

1. Match voltage: Ensure the controller is compatible with your battery system (12V, 24V, or even 48V setups).
2. Calculate total solar panel watts: Sum the wattage of all your solar panels.
3. Calculate required amperage of controller: Current (A) = Panel Wattage ÷ Battery Voltage
4. Add a safety margin: Always select a controller rated 25–30% higher than your calculated current to handle spikes and future upgrades.

Example:

A 100W panel charging a 12V battery:

100 ÷ 12 ≈ 8.3A

8.3 × 1.3 = 10.79A

So, you will need a solar charge controller rated for at least 10 Amps.

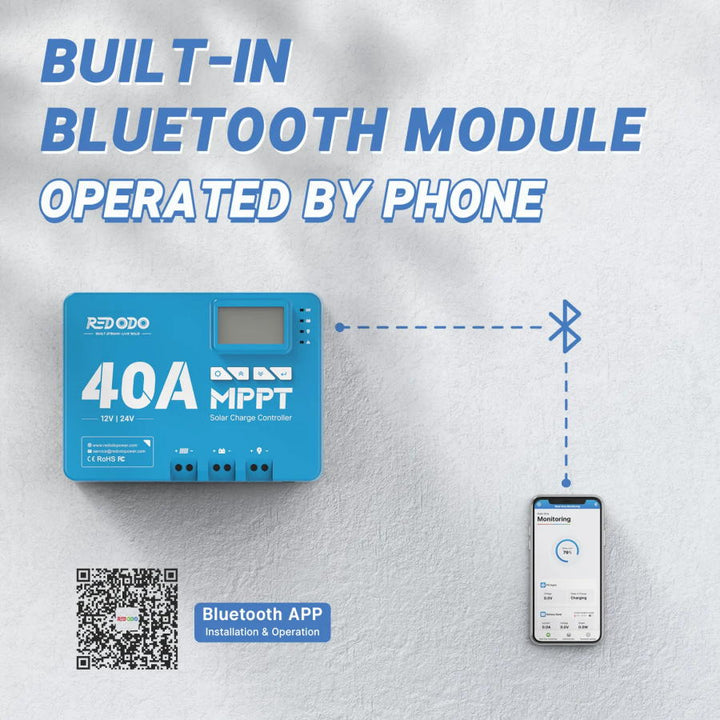

For most boat setups, the Redodo 12V/24V 40A MPPT Solar Charge Controller is an excellent choice. It works seamlessly with both 12V and 24V systems, optimizes solar energy capture, and safeguards your batteries. Plus, its built-in Bluetooth module makes monitoring and adjustments easier.

Recommended Solar Batteries for Boats

Pair your charger with dependable marine batteries and a quality controller. Redodo offers several excellent LiFePO4 options for storing solar energy:

• 12V 100Ah Group 31 Bluetooth Battery: A versatile power source for medium boats, fish finders, and onboard lighting. Its Bluetooth monitoring makes it easy to track performance and remaining capacity in real time.
• 12V 140Ah Group 31 Bluetooth Battery: With extra 40% of capacity, this battery is perfect for anglers who want to expend the fishing times.
• 12V 100Ah Group 24 Bluetooth Battery: Compact yet powerful, this battery fits tight compartments while still delivering dependable energy. Ideal for smaller boats and kayaks.
• 12V 100Ah Lithium Trolling Motor Battery: Designed for high-draw trolling motors with up to 70 lbs, it provides steady output and an impressive cycle life.
• 24V 50Ah Bluetooth Trolling Motor Battery: Tailored for 24V boats systems and 24V trolling motor up to 100 lbs. Its lightweight build and Bluetooth app make power management effortless.

Redodo 12V 100Ah Group 24 Bluetooth Lithium Battery for Boat

Extra Tips for Solar Charging Boat Batteries

Angle the panel: Adjust it toward the sun for optimal power, especially during long stays on the water.

• Use LiFePO4 batteries: Lithium LiFePO4 batteries pair well with solar because they charge quickly and offer long life.
• Go portable: Folding or suitcase-style solar panels are great for small boats or anglers who move around.
• Add a second panel for backup: If you run multiple electronics, you can expand your setup by wiring panels in parallel.
• Clean panels periodically to remove salt spray, dust, or bird droppings that reduce efficiency.
• Check your battery’s status through a Bluetooth app or battery monitor to make sure you’re getting full benefit from solar charging.

FAQs of Marine Solar Charger

Can I charge a marine battery directly with a solar panel?

No. You should always use a solar charge controller between the panel and the battery to avoid overcharging or damage.

How long does it take to charge a marine battery with a solar panel?

It depends on the panel wattage and battery size. A 100W solar panel under good sunlight can deliver around 5–6 amps, taking roughly 8–12 hours to recharge a 50% depleted 100Ah battery.

Are lithium batteries worth the upgrade for solar?

Absolutely. Lithium batteries like Redodo’s charge faster, provide more usable capacity, and longer lifespan with almost no maintenance.

Conclusion

Choosing solar charger (solar panel and charge controller) correctly is the foundation of an efficient marine power setup. By understanding your daily energy draw, battery size, and sunlight conditions, you can choose a solar panel and charge controller that keep your boat ready whenever adventure calls.

For the best results, pair an MPPT controller with a reliable lithium battery such as the Redodo LiFePO4 series. With the right combination of solar charging boat batteries, you’ll enjoy quiet, sustainable, and clean power on every water trip, no matter how far you roam.
