State of Charge
The lifepo4 battery capacity could be roughly estimated by its voltage. As there are subtle differences in the voltage of each battery, the parameters below are for reference only.
The voltage needs to be tested at rest (with zero current) after 30 mins of disconnecting from charger & loads.
100%-13.5V // 99%-13.4V // 90%-13.3V // 70%-13.2V // 40%-13.1V // 30%-13.0V // 20% -12.9V // 10%-12.8V // 1%-10.8V (recommend low voltage disconnect voltage) // 0%-9.5V
Normally, the battery will be at 100% capacity when its rest voltage drops and remains at 13.4-13.6V.
Tips: Recommend to charge with Redodo LifePO4 Charger for longer use.
Recommend Max. Battery System

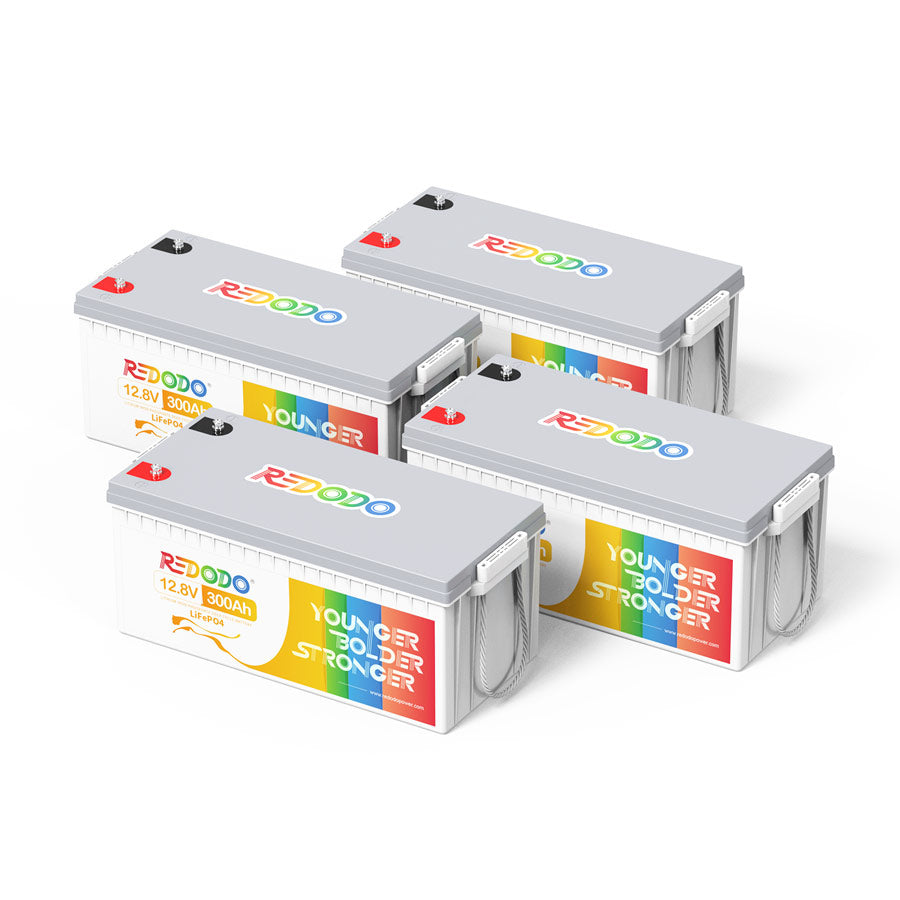

Redodo 300Ah lifepo4 batteries support connecting 16*12.8V 300Ah LiFeP04 batteries in 4P4S to build a 51.2V 1200Ah Battery System.
It could support Max.800A continous charge/discharge current.
Max. load power: 40.96kW
Max. Energy: 61.44kWh
Nominal Capacity: 300Ah
Nominal Voltage: 12.8V
Charge Method: CC/CV
Charge Voltage: 14.4±0.2V
Recommend Charge Current: 60A (0.2C)
Max. Continuous Charge/Discharge Current (BMS): 200A
Max. Discharge Current 5 Seconds: 400A
Max. Continuous Load Power: 2560W
Internal Impedance: ≤40mΩ
Protection Class: IP65
Cycle Life: 4000 cycles @ 100%DOD, 6000 cycles @ 80%DOD, 15000 cycles @ 60%DOD
Dimension: 20.55 x 9.45 x 8.58 inches
Weight: Approx. 64.2 Pounds
Working Temperature Range:
Charge: 0℃ to 50℃ / 32℉ to 122 ℉
Discharge: -20℃ to 60℃ / -4℉ to 140 ℉
