What Battery Do I Need for a Minn Kota Trolling Motor?

Choosing the right battery for Minn Kota trolling motor setups is important while often confusing. With so many options on the market, anglers struggle to figure out which battery actually fits their needs.

Pick the wrong one may cause compatibility issues, reduced motor performance, and even long-term damage that leads to higher replacement costs.

To avoid these issues, this guide cuts through the noise. We’ll break down everything you need to know, from battery types to sizing, and help you find the best battery for Minn Kota trolling motor systems.

What Battery for Minn Kota Trolling Motors?

Minn Kota trolling motors are designed to run for extended periods at variable speeds. That means you need a deep cycle battery built for steady, long-duration discharge, not short bursts of power.

Marine batteries are generally grouped into three categories based on their purposes: starting (cranking), deep cycle, and dual-purpose. Since Minn Kota trolling motors are designed for continuous, variable-speed operation, they require a deep cycle power source, which means both deep cycle and dual-purpose batteries are suitable options.

However, it’s important to note that you should not use a marine starting battery to power a trolling motor. These batteries are built to deliver short bursts of high current to start an engine, and using them for continuous discharge can damage both the battery and your trolling motor system over time.

Deep Cycle vs. Dual-Purpose Battery

So, how do you choose between deep cycle and dual-purpose batteries? If your goal is maximum runtime and consistent performance on the water, a deep cycle marine battery is the better fit. It’s specifically engineered to deliver steady power over long periods and handle repeated deep discharges.

On the other hand, if you want to simplify your boat power setup and reduce the number of batteries onboard, a dual-purpose marine battery is worth considering. It can handle both engine starting and trolling motor power, making it a convenient, space-saving option for many anglers.

In short, go with deep cycle for dedicated trolling performance, or choose dual-purpose if you value convenience and a streamlined system.

What Type of Battery for Minn Kota Trolling Motor?

Most anglers choose trolling motor batteries between three main battery technologies: Flooded Lead-Acid (FLA), AGM, and LiFePO4 lithium batteries.

Flooded Lead-Acid (FLA) Batteries

Flooded lead-acid batteries are the traditional and most affordable option for marine use. They have been widely used for decades and are still found in many entry-level boat setups.

These batteries can still power a Minn Kota trolling motor, but they are better suited for occasional use rather than demanding fishing trips. In real-world use, FLA batteries often show faster voltage drop under load, which can reduce trolling motor performance over time.

AGM (Absorbent Glass Mat) Batteries

AGM batteries are an upgraded version of lead-acid technology. They use a sealed design that eliminates the need for maintenance while improving durability and safety.

AGM batteries are often chosen by boat owners who want reliability without maintenance but don’t want to invest in lithium yet. However, they’re often heavier than lithium alternatives, and have only about 50% usable capacity, meaning half of the rated power is effectively unavailable.

LiFePO4 Lithium Batteries

LiFePO4 lithium batteries represent the most advanced option for marine trolling motors today. They are rapidly becoming the preferred choice for serious anglers and professional fishing setups.

LiFePO4 batteries provide longer runtime, smoother trolling speed, and less weight on the boat. The only drawback is higher upfront cost, but the long lifespan and efficiency usually make it more cost-effective over time.

Can I Use Lithium Batteries with Minn Kota Trolling Motors?

Yes, you can absolutely use lithium batteries with Minn Kota trolling motors, and in fact, they are increasingly considered the best power source for modern setups.

Most Minn Kota trolling motors are compatible with lithium batteries, as long as you match the correct system voltage (12V, 24V, or 36V) and motor's current.

Regarding charging compatibility, Minn Kota officially states that their trolling motors and Precision (PCL) chargers manufactured in 2021 or later offer a designated lithium charge profile, and all previous Precision models have the ability to charge lithium batteries when set to the AGM type selection.

Image by @In-fisherman

What Size Battery for Minn Kota Trolling Motor?

Choosing the right battery size ensures your motor runs efficiently, delivers enough thrust, and provides the ideal runtime on the water. In general, trolling motor battery size depends on two key factors: motor thrust level and system voltage.

Common Battery Group Sizes

Marine batteries are standardized into “group sizes,” which indicate their physical dimensions and, more importantly, their capacity range. For Minn Kota trolling motors, three group sizes are most commonly used: Group 24, Group 27, and Group 31.

Voltage System for Minn Kota Trolling Motors

Minn Kota trolling motors typically operate on 12V, 24V, or 36V systems, depending on thrust level and performance requirements.

• 12V System: Designed for small motors (30–55 lb thrust)
• 24V System: Used for medium motors (70–80 lb thrust)
• 36V System: Required for high-performance motors (100+ lb thrust)

Each system has different power demands, and choosing the correct configuration ensures optimal efficiency and motor performance.

Popular Minn Kota Motor Models and Battery Size Recommendations

Here’s a quick reference table for popular models of Minn Kota:

For extended trips, increasing battery capacity (Ah) can improve your trolling motor runtime.

Best Lithium Batteries for Minn Kota Trolling Motor

If you want maximum performance, reliability, and long-term value, lithium batteries from Redodo stand out. Here are some top recommendations for your Minn Kota trolling motor.

12V 100Ah Lithium Trolling Motor Battery

• Group 31 design
• Low-temp charging/discharging protection
• Ideal for most 12V Minn Kota systems up to 70 lbs

12V 100Ah Group 24 Bluetooth Lithium Battery

• Lightweight and space-saving Group 24 design
• Built-in Bluetooth for real-time battery monitoring
• Perfect for portable or minimalist boat setups

12V 100Ah Group 31 Bluetooth Lithium Battery

• Group 31 design
• Bluetooth smart monitoring via app control
• Ideal Group 31 AGM replacement

12V 100Ah Group 31 Self-Heating Lithium Battery

• Group 31 design
• Built-in self-heating function for low temperatures
• Ensures stable charging in winter environments

12V 165Ah Group 31 Bluetooth Lithium Battery

• 1.65X longer runtime than 100Ah Group 31
• Bluetooth monitoring for real-time battery status
• Maximum endurance for offshore trips and all-day trolling

12V 100Ah Group 27 Dual-Purpose Marine Battery

• 900 CCA cranking, Group 27 standard size
• Supports both engine starting and trolling motor use
• Bluetooth monitoring & low-temp protection

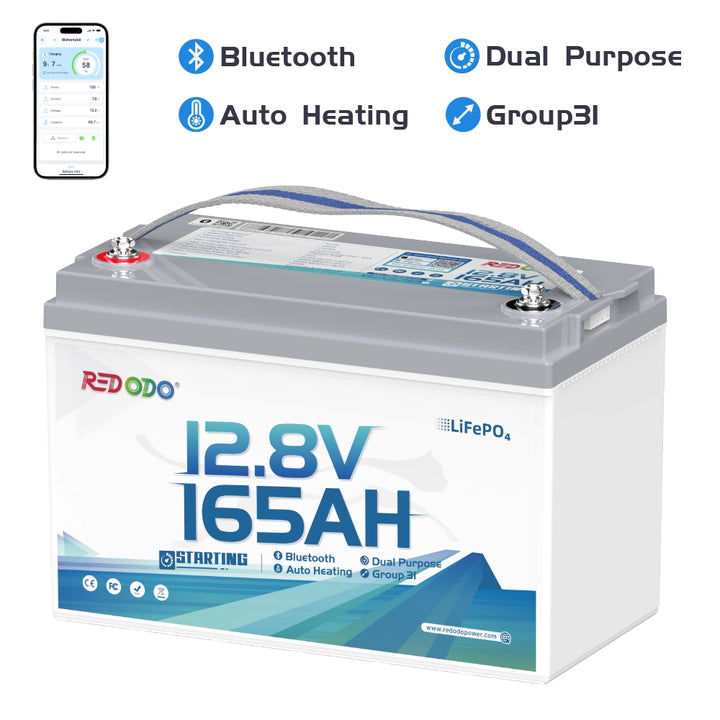

12V 165Ah Group 31 Dual-Purpose Marine Battery

• 1200 CCA cranking, Group 31 standard size
• Dual-purpose design for all-in-one use
• High-capacity for larger boats with multi-system power needs

24V 50Ah Lithium Trolling Motor Battery

• Compact Group 24 size
• Designed for 24V trolling motors up to 100 lbs
• Built-in Bluetooth for real-time monitoring

36V 50Ah Lithium Trolling Motor Battery

• Group 31 design
• Ideal for 36V trolling motors with 100-120 lbs
• Direct replacement of three 12V batteries

Explore more options from Redodo lithium trolling motor battery collection!

Conclusion

Choosing the right battery for Minn Kota trolling motor systems comes down to key factors like battery type, size, and capacity.

Compared to lead-acid batteries, trolling motor lithium batteries strike a better performance with their stable discharge, lighter weight, and longer runtime.

If you want the best battery for Minn Kota trolling motor, lithium options, especially from trusted brands like Redodo, are smart choices with unmatched runtime, durability, and long-term value.

By investing in the right battery today, you’ll enjoy smoother, longer, and more dependable time on the water.
